View larger
Images are for illustrative purposes only. Please refer to data sheet for details

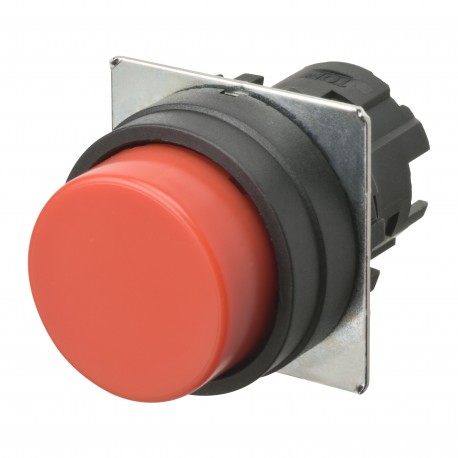

A22NZ-BPM-NRA A2270019D A22NZBPMNRA OMRON Press.22mm, Plastic, OUTGOING, MOMENTANEO, Opaque RED
A22NZ-BPM-NRA
A2270019D
A22NZBPMNRA
OMRON
1 Pcs.
Press.22mm, Plastic, OUTGOING, MOMENTANEO, Opaque RED
Press.22mm, Plastic, SALIENTE, MOMENTANEO, Opaque RED
Pushbutton A22NZ Ø22, bezel plastic, PROJECTED, MOMENTARY, CAP COLOR Opaque RED,
Automation > Front element for push button
A22
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Variety of bezel and color options with aesthetic design.
- Mounting depth less than 46.8 mm below panel.
- Up to 6 contact blocks (3 contact blocks across and 2 rows deep).
- Symmetrical contact block.
- Push-in Plus terminal block type.
- Snap-in switch unit for quick and easy mounting.
- RoHS compliant.
| Feature Name | Feature Value |
|---|---|
| Colour front ring (EF002429) | Black |
| Type of button (EF001546) | High |
| Colour button (EF000190) | Red |
| Degree of protection (NEMA), front side (EF011961) | 13 |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP), front side (EF003118) | IP66 |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | Yes |
| Labelled (EF001537) | No |
| With protective cover (EF005500) | No |
| Switching function latching (EF007447) | No |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Hole diameter (EF000079) | 22 mm |
| Number of command positions (EF001372) | 2 |
