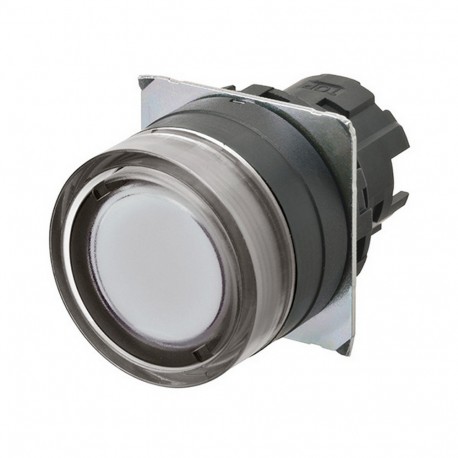

OMRON A22NZ-BGM-TWA A22NZ-BGM-TWA A2270046A 663373 OMRON Pulsa.22mm, Plastic, PROTECTED, MOMENTARY, Transp.WHITE, LIGHTING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-BGM-TWA A2270046A 663373 OMRON Pulsa.22mm, Plastic, PROTECTED, MOMENTARY, Transp.WHITE, LIGHTING

A22NZ-BGM-TWA

A2270046A

A22NZBGMTWA

OMRON

10 Pcs.

Press.22mm, Plastic, PROTECTED, MOMENTANEO, Transp.WHITE, ILLUMINATION Pushbutton A22NZ 22 dia., bezel plastic, full guard, momentary, cap color transparent white, lighted

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

ApplicationPushbutton switch
Bezel materialPlastic
ColorWhite
Number of switch positions2
ProfileFull guard
Reset methodMomentary
ShapeRound
Size22 mm
Suitable for illumination
Transparent

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-WAPushbutton accessory A22NZ, White LED Lamp 6 VDC
A22NZ-L-WBPushbutton accessory A22NZ, White LED Lamp 12 VAC/DC
A22NZ-L-WCPushbutton accessory A22NZ, White LED Lamp 24 VAC/DC
A22NZ-L-WDPushbutton accessory A22NZ, White LED Lamp 100/110/120 VAC
A22NZ-L-WEPushbutton accessory A22NZ, White LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC

ETIM for 663373 Low-voltage industrial controls and switchgear (EC000221)
Feature Name Feature Value
Colour front ring (EF002429) Black
Type of button (EF001546) High
Colour button (EF000190) White
Degree of protection (NEMA), front side (EF011961) 13
Construction type lens (EF006253) Round
Material front ring (EF005972) Plastic
Degree of protection (IP), front side (EF003118) IP65
With front ring (EF006014) Yes
Spring-return (EF001407) Yes
Labelled (EF001537) No
With protective cover (EF005500) No
Switching function latching (EF007447) No
Suitable for lighting (EF001142) Yes
Height opening (EF004778) 22.3 mm
Width opening (EF004565) 22.3 mm
Hole diameter (EF000079) 22 mm
Number of command positions (EF001372) 2
