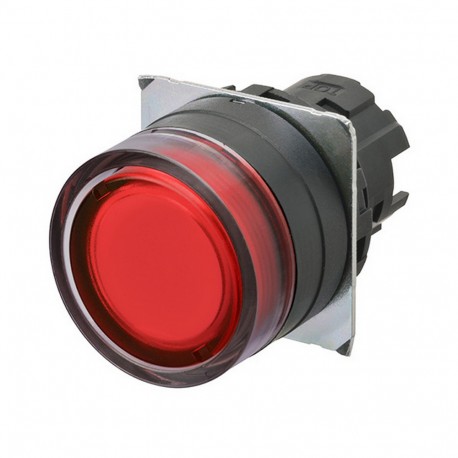

OMRON A22NZ-BGM-TRA A22NZ-BGM-TRA A2270043G 664971 OMRON Pulsa.22mm, Plastic, PROTECTED, MOMENTARY, Transp.RED, LIGHTING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-BGM-TRA A2270043G 664971 OMRON Pulsa.22mm, Plastic, PROTECTED, MOMENTARY, Transp.RED, LIGHTING

A22NZ-BGM-TRA

A2270043G

A22NZBGMTRA

OMRON

10 Pcs.

Press.22mm, Plastic, PROTECTED, MOMENTANEO, Transp.RED, ILLUMINATION Pushbutton A22NZ 22 dia., bezel plastic, full guard, momentary, cap color transparent red, lighted

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron A22NZ-BGM-TRA A2270043G 664971 omron pulsa.22mm, plastic, protected, momentary, transp.red, lighting acts as an electromechanical interface allowing personnel to interact with automated production systems. These devices are mounted in control consoles to initiate or interrupt specific machine cycles.

Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Pushbutton switch
  • Bezel material: Plastic
  • Color: Red
  • Number of switch positions: 2
  • Profile: Full guard
  • Reset method: Momentary
  • Shape: Round
  • Size: 22 mm
  • Type of button (EF001546): High
  • Colour button (EF000190): Red
  • Degree of protection (NEMA), front side (EF011961): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes

More info

▲

Specifications

ApplicationPushbutton switch
Bezel materialPlastic
ColorRed
Number of switch positions2
ProfileFull guard
Reset methodMomentary
ShapeRound
Size22 mm
Suitable for illumination
Transparent

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-302Pushbutton accessory A22NZ, LED Lamp Extractor
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-RAPushbutton accessory A22NZ, Red LED Lamp 6 VDC
A22NZ-L-RBPushbutton accessory A22NZ, Red LED Lamp 12 VAC/DC
A22NZ-L-RCPushbutton accessory A22NZ, Red LED Lamp 24 VAC/DC
A22NZ-L-RDPushbutton accessory A22NZ, Red LED Lamp 100/110/120 VAC
A22NZ-L-REPushbutton accessory A22NZ, red LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-APA22N Lighting Units, 6 VDC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-BPA22N Lighting Units, 12 VAC/DC, push-in terminal
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-CPA22N Lighting Units, 24 VAC/DC, push-in terminal
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-DPA22N Lighting Units, 100/110/120 VAC, push-in terminal
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC
A22NZ-T-EPA22N Lighting Units, 200/220/230/240 VAC, push-in terminal
