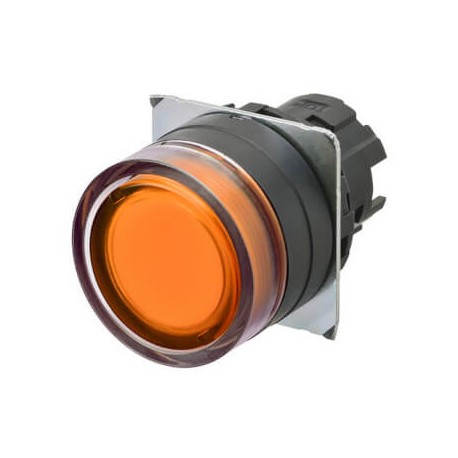

OMRON A22NZ-BGM-TOA A22NZ-BGM-TOA A2270048H 692923 OMRON Operating Unit, Full Protection Type Round, Orange, Transparent, Resin,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-BGM-TOA A2270048H 692923 OMRON Operating Unit, Full Protection Type Round, Orange, Transparent, Resin,..

A22NZ-BGM-TOA

A2270048H

A22NZBGMTOA

OMRON

1 Pcs.

Operation unit, Round full guard type, Orange, Transparent, Resin, Lighted, Momentary

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron operating unit provides reliable visual and tactile signaling capabilities for complex electrical control panels. This transparent orange high-profile pushbutton element is engineered for standard 22 mm mounting installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour front ring (EF002429): Black
  • Type of button (EF001546): High
  • Colour button (EF000190): Orange
  • Degree of protection (NEMA), front side (EF011961): 13
  • Construction type lens (EF006253): Square
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Labelled (EF001537): No
  • With protective cover (EF005500): No
  • Switching function latching (EF007447): No
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Hole diameter (EF000079): 22 mm

More info

▲
ApplicationPushbutton switchBezel materialPlasticColorOrangeNumber of switch positions2ProfileFull guardReset methodMomentaryShapeRoundSize22 mmSuitable for illuminationTransparent

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
