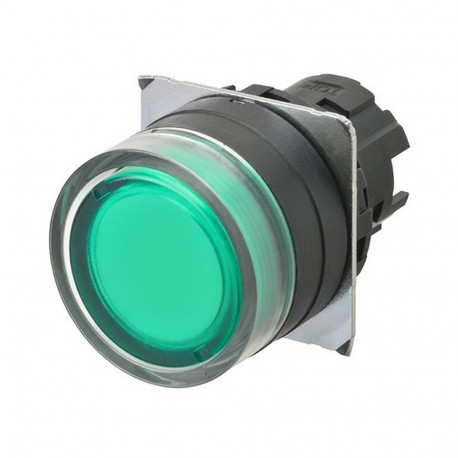

OMRON A22NZ-BGA-TGA A22NZ-BGA-TGA A2270242A A22NZBGATGA OMRON Press.22mm, Plastic, PROTECTED, SWITCHED, Transp.GREEN, LIGHTING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-BGA-TGA A2270242A A22NZBGATGA OMRON Press.22mm, Plastic, PROTECTED, SWITCHED, Transp.GREEN, LIGHTING

A22NZ-BGA-TGA

A2270242A

A22NZBGATGA

OMRON

10 Pcs.

Press.22mm, Plastic, PROTECTED, SWITCHED, Transp.GREEN, LIGHTING Press.22mm, Plastic, PROTECTED, ALTERNATE, Transp.GREEN, LIGHTING Pushbutton A22NZ 22 dia., bezel plastic, full guard, alternate, cap color transparent green, lighted

Automation > Front element for push button
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron A22NZ-BGA-TGA pushbutton actuator provides a protected, high-profile operator control interface for industrial automation systems and machinery. Operators use these illuminated devices to initiate control commands while ensuring visual status indication on control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour front ring (EF002429): Black
  • Type of button (EF001546): High
  • Colour button (EF000190): Green
  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No
  • Labelled (EF001537): No
  • With protective cover (EF005500): No
  • Switching function latching (EF007447): No
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Hole diameter (EF000079): 22 mm

More info

▲
  • Variety of bezel and color options with aesthetic design.
  • Mounting depth less than 46.8 mm below panel.
  • Up to 6 contact blocks (3 contact blocks across and 2 rows deep).
  • Symmetrical contact block.
  • Push-in Plus terminal block type.
  • Snap-in switch unit for quick and easy mounting.
  • RoHS compliant.
