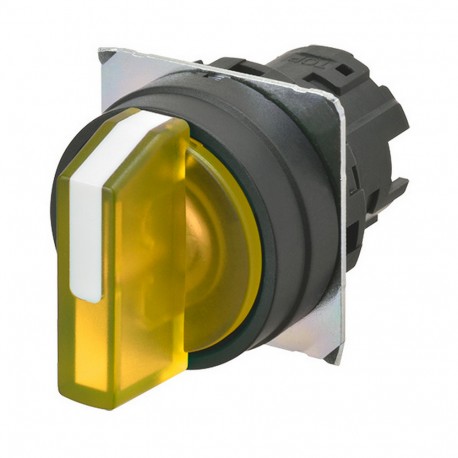

OMRON A22NZ-3BM-TYA A22NZ-3BM-TYA A2270477G 663832 OMRON Select.22mm, 3 Position, Lighting, Plastic, MANUAL, YELLOW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-3BM-TYA A2270477G 663832 OMRON Select.22mm, 3 Position, Lighting, Plastic, MANUAL, YELLOW

A22NZ-3BM-TYA

A2270477G

A22NZ3BMTYA

OMRON

1 Pcs.

Select.22mm, 3 Position, Lighting, Plastic, MANUAL, YELLOW Selector A22NZ Ø22, 3 position, Lighted, bezel PLASTIC, MANUAL, COLOR YELLOW

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron select.22mm, 3 Position, Lighting, Plastic, MANUAL, YELLOW (A22NZ-3BM-TYA) provides a clear three-position rotary control interface with illumination properties for machine operation panels. Industrial automation systems utilize lighted selector switches to streamline operator decision-making and manual overrides.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Application: Selector switch
  • Bezel material: Plastic
  • Color: Yellow
  • Number of switch positions: 3
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Colour indicator light cap (EF007165): Yellow
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Rotating button
  • Degree of protection (IP), front side (EF003118): IP66
  • Colour control element (EF007167): Yellow
  • With front ring (EF006014): Yes

More info

▲

Specifications

ApplicationSelector switch
Bezel materialPlastic
ColorYellow
Number of switch positions3
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-YAPushbutton accessory A22NZ, Yellow LED Lamp 6 VDC
A22NZ-L-YBPushbutton accessory A22NZ, Yellow LED Lamp 12 VAC/DC
A22NZ-L-YCPushbutton accessory A22NZ, Yellow LED Lamp 24 VAC/DC
A22NZ-L-YDPushbutton accessory A22NZ, Yellow LED Lamp 100/110/120 VAC
A22NZ-L-YEPushbutton accessory A22NZ, Yellow LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC
