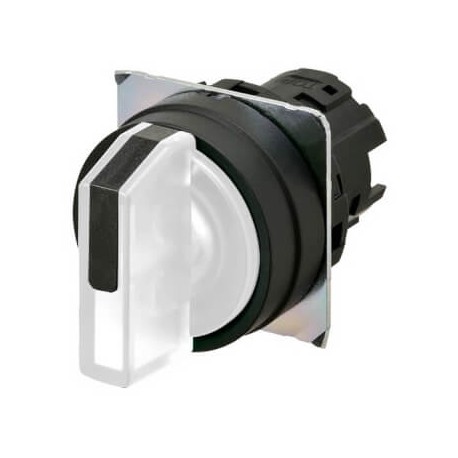

OMRON A22NZ-3BM-TWA A22NZ-3BM-TWA A2270478E 660028 OMRON Select.22mm, 3 Position, Lighting, Plastic, MANUAL, WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-3BM-TWA A2270478E 660028 OMRON Select.22mm, 3 Position, Lighting, Plastic, MANUAL, WHITE

A22NZ-3BM-TWA

A2270478E

A22NZ3BMTWA

OMRON

10 Pcs.

Select.22mm, 3 Position, Lighting, Plastic, MANUAL, WHITE Selector A22NZ Ø22, 3 position, Lighted, bezel PLASTIC, MANUAL, COLOR WHITE

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron selector switch part number A22NZ-3BM-TWA provides dependable electrical switching for commercial and industrial control panels. Operators use multi-position selector units like this to route signals, select operating modes, or enable safety interlocks on complex machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Selector switch
  • Bezel material: Plastic
  • Color: White
  • Number of switch positions: 3
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Colour indicator light cap (EF007165): White
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Rotating button
  • Degree of protection (IP), front side (EF003118): IP66
  • Colour control element (EF007167): White
  • With front ring (EF006014): Yes

More info

▲

Specifications

ApplicationSelector switch
Bezel materialPlastic
ColorWhite
Number of switch positions3
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-302Pushbutton accessory A22NZ, LED Lamp Extractor
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-WAPushbutton accessory A22NZ, White LED Lamp 6 VDC
A22NZ-L-WBPushbutton accessory A22NZ, White LED Lamp 12 VAC/DC
A22NZ-L-WCPushbutton accessory A22NZ, White LED Lamp 24 VAC/DC
A22NZ-L-WDPushbutton accessory A22NZ, White LED Lamp 100/110/120 VAC
A22NZ-L-WEPushbutton accessory A22NZ, White LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-APA22N Lighting Units, 6 VDC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-BPA22N Lighting Units, 12 VAC/DC, push-in terminal
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-CPA22N Lighting Units, 24 VAC/DC, push-in terminal
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-DPA22N Lighting Units, 100/110/120 VAC, push-in terminal
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC
A22NZ-T-EPA22N Lighting Units, 200/220/230/240 VAC, push-in terminal
