View larger
Images are for illustrative purposes only. Please refer to data sheet for details

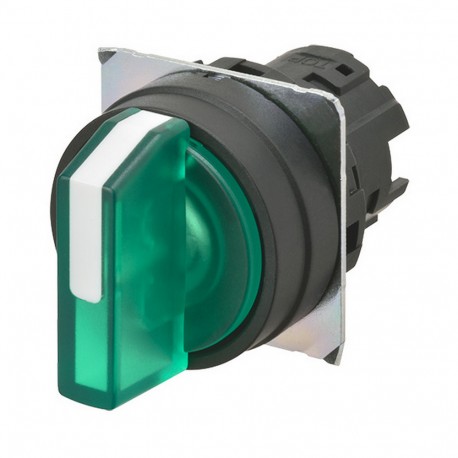

A22NZ-3BM-TGA A2270476R 661886 OMRON Select.22mm, 3-Position, Lighting, Plastic, MANUAL, GREEN
A22NZ-3BM-TGA
A2270476R
A22NZ3BMTGA
OMRON
10 Pcs.
Select.22mm, 3 Position, Lighting, Plastic, MANUAL, GREEN
Selector A22NZ 22 dia., 3 position, Lighted, bezel plastic, manual, color green
Automation > Front element for selector switch
A22
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationSelector switchBezel materialPlasticColorGreenNumber of switch positions3Reset methodManual resetShapeRoundSize22 mmSuitable for illumination
| Feature Name | Feature Value |
|---|---|
| Colour front ring (EF002429) | Black |
| Colour indicator light cap (EF007165) | Green |
| Degree of protection (NEMA) (EF011959) | 13 |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Type of control element (EF006976) | Rotating button |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Colour control element (EF007167) | Green |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | No |
| Switching function latching (EF007447) | No |
| Suitable for lighting (EF001142) | Yes |
| Number of switch positions (EF000231) | 3 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Hole diameter (EF000079) | 22 mm |
