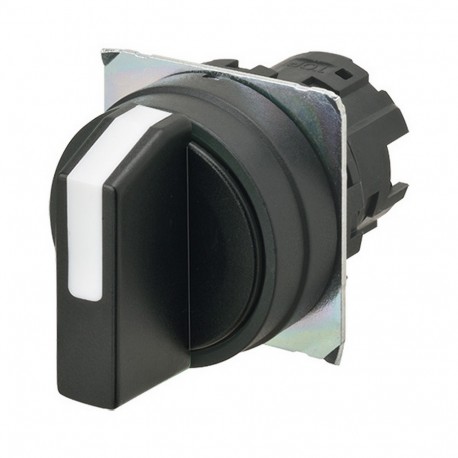

OMRON A22NZ-3BM-NBA A22NZ-3BM-NBA A2270474B 660930 OMRON Select.22mm, 3-Position, Plastic, MANUAL, BLACK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-3BM-NBA A2270474B 660930 OMRON Select.22mm, 3-Position, Plastic, MANUAL, BLACK

A22NZ-3BM-NBA

A2270474B

A22NZ3BMNBA

OMRON

10 Pcs.

Select.22mm, 3 Positions, Plastic, MANUAL, BLACK Selector A22NZ 22 dia., 3 position, NON-Lighted, bezel plastic, manual, color black

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron rotating button selector switch, designated by part number A22NZ-3BM-NBA, is a standard operator interface unit deployed within industrial electrical panels. It provides reliable manual selection of multiple circuit paths and operating modes in manufacturing and processing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Selector switch
  • Bezel material: Plastic
  • Color: Black
  • Number of switch positions: 3
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Rotating button
  • Degree of protection (IP), front side (EF003118): IP66
  • Colour control element (EF007167): Black
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No

More info

▲

Specifications

ApplicationSelector switch
Bezel materialPlastic
ColorBlack
Number of switch positions3
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
