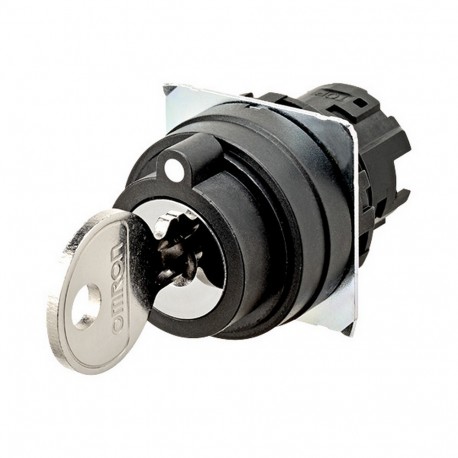

OMRON A22NZ-3BM-01DA A22NZ-3BM-01DA A2270628A 661995 OMRON Select.wrench 22mm, 3 Positions, Plastic, MANUAL, Extraction CENTER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-3BM-01DA A2270628A 661995 OMRON Select.wrench 22mm, 3 Positions, Plastic, MANUAL, Extraction CENTER

A22NZ-3BM-01DA

A2270628A

A22NZ3BM01DA

OMRON

10 Pcs.

Select.wrench, 22mm, 3 Positions, Plastic, MANUAL, Extraction CENTER Selector A22NZ Ø22, Key type S, 3 position, bezel plastic, MANUAL, RELEASE position CENTER

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron key selector switch provides robust, restricted-access control for industrial automation equipment, allowing operators to safely alter system operating states with a physical key. This device is engineered for standard 22 mm panel cutouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Key selector switch
  • Bezel material: Plastic
  • Key release position: Center
  • Number of switch positions: 3
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Key
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No
  • Switching function latching (EF007447): Yes

More info

▲

Specifications

ApplicationKey selector switch
Bezel materialPlastic
Key release positionCenter
Number of switch positions3
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-K-01Pushbutton accessory A22NZ, Key
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
