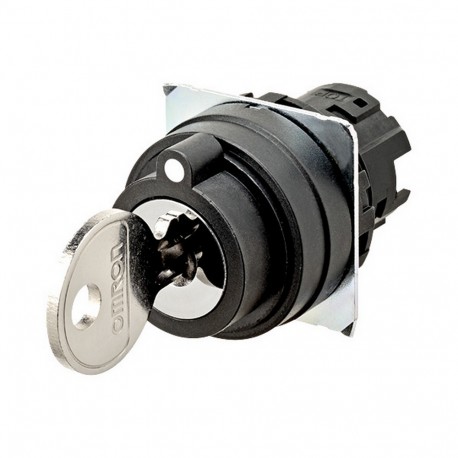

OMRON A22NZ-3BB-01DA A22NZ-3BB-01DA A2270634F 659866 OMRON Select.wrench 22mm, 3 positions, plastic, auto reset. LEFT/RIGHT, CENT.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-3BB-01DA A2270634F 659866 OMRON Select.wrench 22mm, 3 positions, plastic, auto reset. LEFT/RIGHT, CENT..

A22NZ-3BB-01DA

A2270634F

A22NZ3BB01DA

OMRON

20 Pcs.

Select.wrench, 22mm, 3 Positions, Plastic, AUTO RESET.LEFT/RIGHT, Pull CENTROCENTER Selector A22NZ Ø22, Key type S, 3 position, bezel plastic, AUTO RESET ON L/R, RELEASE position CENTER

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number A22NZ-3BB-01DA is a key selector switch equipped with automatic reset on both left and right positions, offering restricted access control for complex industrial setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Application: Key selector switch
  • Bezel material: Metal
  • Key release position: Center
  • Number of switch positions: 3
  • Reset method: Auto reset on left and right
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Key
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Switching function latching (EF007447): No

More info

▲

Specifications

ApplicationKey selector switch
Bezel materialMetal
Key release positionCenter
Number of switch positions3
Reset methodAuto reset on left and right
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-K-01Pushbutton accessory A22NZ, Key
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
