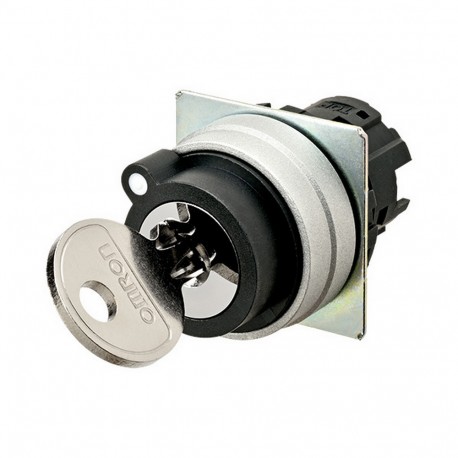

OMRON A22NZ-2MM-01BA A22NZ-2MM-01BA A2270618D 664883 OMRON Select.wrench 22mm, 2 positions, metal, MANUAL, LEFT extraction. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-2MM-01BA A2270618D 664883 OMRON Select.wrench 22mm, 2 positions, metal, MANUAL, LEFT extraction.

A22NZ-2MM-01BA

A2270618D

A22NZ2MM01BA

OMRON

20 Pcs.

Select.wrench, 22mm, 2 Positions, Metal, MANUAL, Pull, LEFT Selector A22NZ 22 dia., Key type S, 2 position, bezel brushed M, manual, release position left

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A22NZ-2MM-01BA A2270618D 664883 Omron key selector switch provides controlled access for multi-position routing of industrial signals and machine functions. This robust metallic assembly restricts operation to authorized personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Key selector switch
  • Bezel material: Brushed metal
  • Key release position: Left
  • Number of switch positions: 2
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Chrome
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Type of control element (EF006976): Key
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No
  • Switching function latching (EF007447): No

More info

▲

Specifications

ApplicationKey selector switch
Bezel materialBrushed metal
Key release positionLeft
Number of switch positions2
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-K-01Pushbutton accessory A22NZ, Key
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
