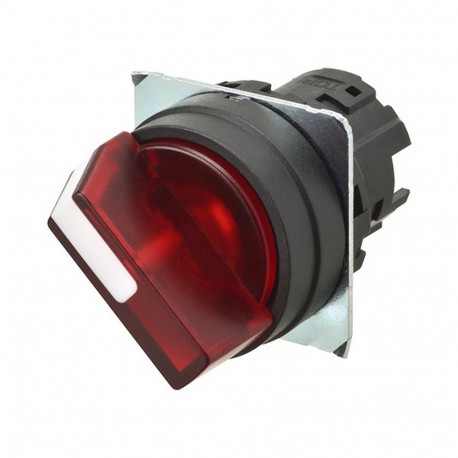

OMRON A22NZ-2BM-TRA A22NZ-2BM-TRA A2270403C 663831 OMRON Select.22mm, 2 Position, Lighting, Plastic, MANUAL, RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-2BM-TRA A2270403C 663831 OMRON Select.22mm, 2 Position, Lighting, Plastic, MANUAL, RED

A22NZ-2BM-TRA

A2270403C

A22NZ2BMTRA

OMRON

10 Pcs.

Select.22mm, 2 Position, Lighting, Plastic, MANUAL, RED Selector A22NZ 22 dia., 2 position, Lighted, bezel plastic, manual, color red

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Select.22mm, 2 Position, Lighting, Plastic, MANUAL, RED (part A22NZ-2BM-TRA) provides reliable manual switching and visual status feedback on industrial control panels and machinery. Operator control devices of this type are typically integrated into electrical enclosures to facilitate user-driven process selection and machine management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Selector switch
  • Bezel material: Plastic
  • Color: Red
  • Number of switch positions: 2
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Colour indicator light cap (EF007165): Red
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Rotating button
  • Degree of protection (IP), front side (EF003118): IP66
  • Colour control element (EF007167): Red
  • With front ring (EF006014): Yes

More info

▲

Specifications

ApplicationSelector switch
Bezel materialPlastic
ColorRed
Number of switch positions2
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-303Pushbutton accessory A22NZ, Protective Cover
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-L-RAPushbutton accessory A22NZ, Red LED Lamp 6 VDC
A22NZ-L-RBPushbutton accessory A22NZ, Red LED Lamp 12 VAC/DC
A22NZ-L-RCPushbutton accessory A22NZ, Red LED Lamp 24 VAC/DC
A22NZ-L-RDPushbutton accessory A22NZ, Red LED Lamp 100/110/120 VAC
A22NZ-L-REPushbutton accessory A22NZ, red LED Lamp 200/220/230 VAC
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
A22NZ-T-BPushbutton accessory A22NZ, Lighting Unit 12 VAC/VDC
A22NZ-T-CPushbutton accessory A22NZ, Lighting Unit 24 VAC/VDC
A22NZ-T-DPushbutton accessory A22NZ, Lighting Unit 100/110/120 VAC
A22NZ-T-EPushbutton accessory A22NZ, Lighting Unit 200/220/230 VAC
