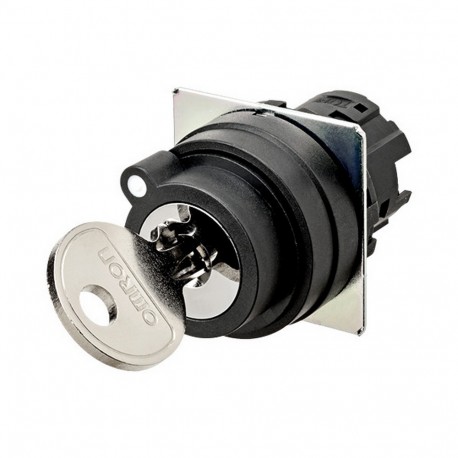

OMRON A22NZ-2BM-01CA A22NZ-2BM-01CA A2270615M 666638 OMRON Select.wrench 22mm, 2 positions, plastic, MANUAL, RIGHT extraction. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-2BM-01CA A2270615M 666638 OMRON Select.wrench 22mm, 2 positions, plastic, MANUAL, RIGHT extraction.

A22NZ-2BM-01CA

A2270615M

A22NZ2BM01CA

OMRON

10 Pcs.

Select.wrench, 22mm, 2 Position, Plastic, MANUAL, Extraction DER Selector A22NZ Ø22, Key type S, 2 position, bezel plastic, MANUAL, RELEASE position RIGHT

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

ApplicationKey selector switch
Bezel materialPlastic
Key release positionRight
Number of switch positions2
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-K-01Pushbutton accessory A22NZ, Key
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal

ETIM for 666638 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Colour front ring (EF002429) Black
Colour indicator light cap (EF007165) Other
Degree of protection (NEMA) (EF011959) 13
Construction type lens (EF006253) Round
Material front ring (EF005972) Plastic
Type of control element (EF006976) Key
Degree of protection (IP), front side (EF003118) IP66
Colour control element (EF007167) Other
With front ring (EF006014) Yes
Spring-return (EF001407) No
Switching function latching (EF007447) Yes
Suitable for lighting (EF001142) No
Number of switch positions (EF000231) 2
Height opening (EF004778) 22 mm
Width opening (EF004565) 22 mm
Hole diameter (EF000079) 22 mm
