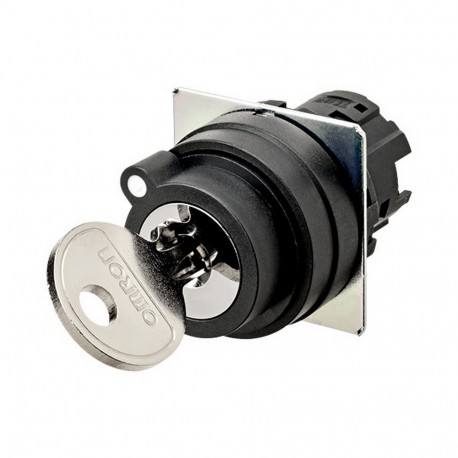

OMRON A22NZ-2BM-01BA A22NZ-2BM-01BA A2270614A 664829 OMRON Select.wrench 22mm, 2 positions, plastic, MANUAL, LEFT draw. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NZ-2BM-01BA A2270614A 664829 OMRON Select.wrench 22mm, 2 positions, plastic, MANUAL, LEFT draw.

A22NZ-2BM-01BA

A2270614A

A22NZ2BM01BA

OMRON

10 Pcs.

Select.wrench, 22mm, 2 Position, Plastic, MANUAL, Pull LEFT Selector A22NZ 22 dia., Key type S, 2 position, bezel plastic, manual, release position left

Automation > Front element for selector switch
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron A22NZ-2BM-01BA is a 22 mm plastic key selector switch with two positions and a manual left-draw release configuration. Key selector switches are installed on industrial control panels to guarantee that only personnel with the designated key can initiate specific operational commands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Key selector switch
  • Bezel material: Plastic
  • Key release position: Left
  • Number of switch positions: 2
  • Reset method: Manual reset
  • Shape: Round
  • Size: 22 mm
  • Colour front ring (EF002429): Black
  • Degree of protection (NEMA) (EF011959): 13
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Key
  • Degree of protection (IP), front side (EF003118): IP66
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No
  • Switching function latching (EF007447): No

More info

▲

Specifications

ApplicationKey selector switch
Bezel materialPlastic
Key release positionLeft
Number of switch positions2
Reset methodManual reset
ShapeRound
Size22 mm
Suitable for illumination

Accessories

A22NZ-A-301Pushbutton accessory A22NZ, Tightening Wrench
A22NZ-A-401Pushbutton accessory A22NZ 22 dia., plastic hole plug
A22NZ-A-402Pushbutton accessory A22NZ, metal Hole Plug
A22NZ-A-403Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-50103Pushbutton accessory A22NZ 22 dia., Small Legend Plate Frame
A22NZ-A-50501Pushbutton accessory A22NZ Ø22, Lock Ring
A22NZ-A-51103Pushbutton accessory A22NZ 22 dia., Large Legend Plate Frame
A22NZ-A-C01Pushbutton accessory A22NZ, Reinforcement Plate
A22NZ-H-01Pushbutton accessory A22NZ, Mounting Collar
A22NZ-K-01Pushbutton accessory A22NZ, Key
A22NZ-S-G1APushbutton A22NZ, Contact Block SPST-NO (blue)
A22NZ-S-G1BPushbutton A22NZ, Contact Block SPST-NC (orange)
A22NZ-S-P1AA22N Contact blocks, SPST-NO, push-in terminal
A22NZ-S-P1BA22N Contact blocks, SPST-NC, push-in terminal
A22NZ-S-P2AA22N Contact blocks, DPST-NO, push-in terminal
A22NZ-S-P2BA22N contact blocks, DPST-NC, push-in terminal
A22NZ-S-P2CA22N Contact blocks, SPST-NO + SPST-NC, push-in terminal
