A22NZ-2BL-TGA A2270416E A22NZ2BLTGA OMRON Select.22mm, 2 Position, Lighting, Plastic, AUTO RESET.LEFT, GREEN
A22NZ-2BL-TGA
A2270416E
A22NZ2BLTGA
OMRON
10 Pcs.
Automation > Front element for selector switch
A22
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

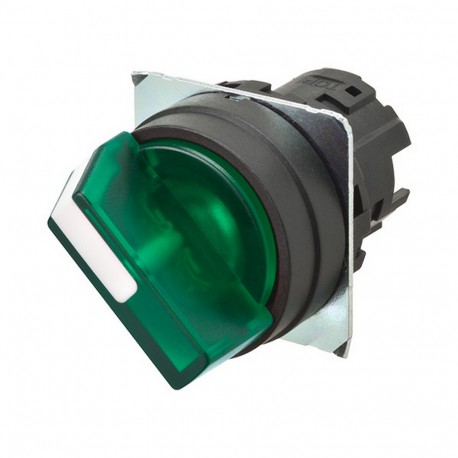

An Omron A22NZ-2BL-TGA illuminated selector switch is installed in factory automation panels to let operators manually select operational modes. The rotating button mechanism directs switching functions, while the green lens cap and internal lighting provide clear visual feedback.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour front ring (EF002429): Black
- Colour indicator light cap (EF007165): Green
- Degree of protection (NEMA) (EF011959): 13
- Construction type lens (EF006253): Round
- Material front ring (EF005972): Plastic
- Type of control element (EF006976): Rotating button
- Degree of protection (IP), front side (EF003118): IP66
- Colour control element (EF007167): Green
- With front ring (EF006014): Yes
- Spring-return (EF001407): Yes
- Switching function latching (EF007447): No
- Suitable for lighting (EF001142): Yes
- Number of switch positions (EF000231): 2
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Hole diameter (EF000079): 22 mm
More info
▲- Knob style selector switches provide users with a reliable way to start or choose between machine operations.
- 2 and 3-position switches with manual or automatic reset.
- Mounting depth less than 46.8 mm behind panel.
- Up to 6 contact blocks (3 contact blocks across and 2 rows deep).
- Symmetrical contact block.
- Push-In Plus terminal block type.
- Snap-in switch unit for quick and easy mounting.
- RoHS compliant.
