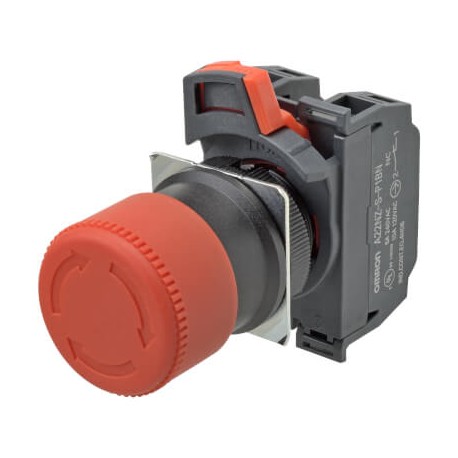

OMRON A22NE-S-P202-N A22NE-S-P202-N A22E0022E 679727 OMRON Push button 30mm Emergency Rotate IP65 2NC Push-in+ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NE-S-P202-N A22E0022E 679727 OMRON Push button 30mm Emergency Rotate IP65 2NC Push-in+

A22NE-S-P202-N

A22E0022E

A22NESP202N

OMRON

10 Pcs.

Pushbutton, 30mm, Emergency Turn IP65, 2NC, Push-in+ Emergency stop switch, Push-In, non-illuminated, 30 mm dia, push-lock/turn-reset, 2NC

Automation > Emergency stop complete
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron push button designed for integration into safety instrumented systems to halt machinery instantly when operators press the mushroom head. These safety components are standard across manufacturing lines to protect personnel by interrupting power circuits during unexpected machine hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts, normally-open: 0
  • Number of contacts, normally-closed: 2
  • Unlocking method: Turn unlatching mechanism
  • Diameter cap: 30 mm
  • Hole diameter: 22 mm
  • Mounting method: Built-in
  • Text colour: N/A
  • Lighting voltage: N/A
  • Connection type auxiliary circuit: Spring clamp connection
  • Degree of protection (IP): IP65
  • Mounting method (EF000003): Built-in
  • Degree of protection (IP) (EF005474): IP65
  • Connection type auxiliary circuit (EF006820): Spring clamp connection
  • Unlocking method (EF001403): Turn-release
  • With lighting (EF003829): No
  • Number of contacts as normally open contact (EF008256): 0

More info

▲

Specifications

Number of contacts, normally-open0
Number of contacts, normally-closed2
Unlocking methodTurn unlatching mechanism
Diameter cap30 mm
Hole diameter22 mm
Mounting methodBuilt-in
With lighting
With lock lever contact function
Button textNone
Text colourN/A
Lighting voltageN/A
Connection type auxiliary circuitSpring clamp connection
Degree of protection (IP)IP65
