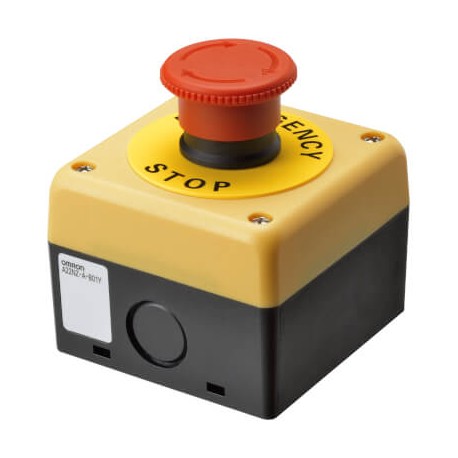

OMRON A22NE-M-P202-N-B A22NE-M-P202-N-B A22E0084E 679807 OMRON Push Button 40mm Emergency Swivel IP65 2NC Push-in+ includes Yellow .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NE-M-P202-N-B A22E0084E 679807 OMRON Push Button 40mm Emergency Swivel IP65 2NC Push-in+ includes Yellow ..

A22NE-M-P202-N-B

A22E0084E

A22NEMP202NB

OMRON

1 Pcs.

Push button 40mm Emergency Turn IP65, 2NC, Push-in+ includes yellow Box E-Stop, push-in, 2NC, 40-dia. head Medium Turn-reset. with integrated control box

Automation > Emergency stop complete
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron push button functions as an emergency control operator implemented on control panels to instantly interrupt electrical circuits and halt automated processes. Such safety devices are essential across manufacturing plants to protect operators from unexpected mechanical hazards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts, normally-open: 0
  • Number of contacts, normally-closed: 2
  • Unlocking method: Turn unlatching mechanism
  • Diameter cap: 40 mm
  • Hole diameter: 22 mm
  • Mounting method: Surface mounting
  • Button text: STOP
  • Text colour: Black
  • Lighting voltage: N/A
  • Connection type auxiliary circuit: Spring clamp connection
  • Degree of protection (IP): IP65

More info

▲

Specifications

Number of contacts, normally-open0
Number of contacts, normally-closed2
Unlocking methodTurn unlatching mechanism
Diameter cap40 mm
Hole diameter22 mm
Mounting methodSurface mounting
With lighting
With lock lever contact function
Button textSTOP
Text colourBlack
Lighting voltageN/A
Connection type auxiliary circuitSpring clamp connection
Degree of protection (IP)IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
