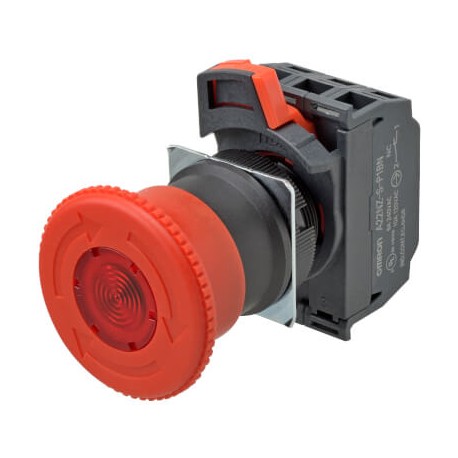

OMRON A22NE-M-P202-C A22NE-M-P202-C A22E0043H 679722 OMRON Pushbutton 40mm Emergency Lighting 24Vdc/Vca Rotate IP65 2NC Push-in+ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22NE-M-P202-C A22E0043H 679722 OMRON Pushbutton 40mm Emergency Lighting 24Vdc/Vca Rotate IP65 2NC Push-in+

A22NE-M-P202-C

A22E0043H

A22NEMP202C

OMRON

10 Pcs.

Push button 40mm Emergency Lighting 24vdc/Vac Turn IP65, 2NC, Push-in+ Emergency stop switch, Push-in, 24 VAC/DC illuminated, 40 mm dia, push-lock/turn-reset, 2NC

Automation > Emergency stop complete
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron pushbutton combines an illuminated emergency stop interface with robust mechanical latching to safeguard complex automated processes. Industrial facilities rely on these robust devices to halt hazardous motion swiftly and maintain safe working environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts, normally-open: 0
  • Number of contacts, normally-closed: 2
  • Unlocking method: Turn unlatching mechanism
  • Diameter cap: 40 mm
  • Hole diameter: 22 mm
  • Mounting method: Built-in
  • Text colour: N/A
  • Lighting voltage: 24 VAC/DC
  • Connection type auxiliary circuit: Spring clamp connection
  • Degree of protection (IP): IP65

More info

▲

Specifications

Number of contacts, normally-open0
Number of contacts, normally-closed2
Unlocking methodTurn unlatching mechanism
Diameter cap40 mm
Hole diameter22 mm
Mounting methodBuilt-in
With lighting
With lock lever contact function
Button textNone
Text colourN/A
Lighting voltage24 VAC/DC
Connection type auxiliary circuitSpring clamp connection
Degree of protection (IP)IP65
