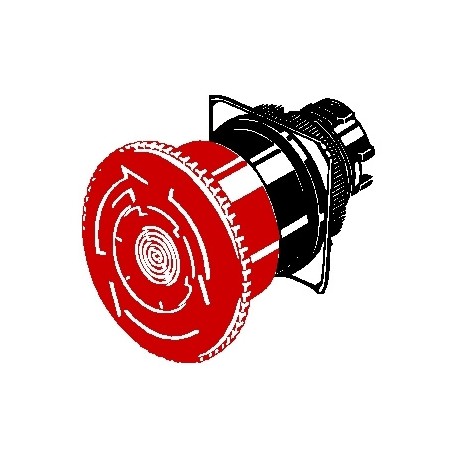

OMRON A22EL-M-24A-02 A22EL-M-24A-02 A22E7010M 151036 OMRON Emergency stop push-button, illuminated, 40 mm diameter, push-lock/unl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22EL-M-24A-02 A22E7010M 151036 OMRON Emergency stop push-button, illuminated, 40 mm diameter, push-lock/unl..

A22EL-M-24A-02

A22E7010M

A22ELM24A02

OMRON

30 Pcs.

Emergency stop switch, illuminated, 40 mm dia., push-lock/turn-reset, IP65

Automation > Emergency stop complete
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron illuminated emergency stop push-button combines physical safety disconnection with visual status indication, making it easy to locate safety controls in dimly lit industrial areas. This device type is integrated into control consoles to ensure immediate machine shutdown capabilities backed by clear operational signaling. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Built-in
  • Degree of protection (IP) (EF005474): IP65
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Unlocking method (EF001403): Turn-release
  • With lighting (EF003829): Yes
  • Number of contacts as normally open contact (EF008256): 0
  • Supply voltage lamp (EF006522): 24 V
  • Number of contacts as normally closed contact (EF008255): 2
  • Hole diameter (EF000079): 22 mm
  • Diameter cap (EF001423): 40 mm

More info

▲
Number of contacts, normally-open0Number of contacts, normally-closed2Unlocking methodTurn unlatching mechanismDiameter cap40 mmHole diameter22 mmMounting methodBuild-inWith lightingWith lock lever contact functionButton textNoneText colorNot ApplicableLighting voltage24 VAC/DCConnection type auxiliary circuitScrew connectionDegree of protection (IP)IP65
