View larger
Images are for illustrative purposes only. Please refer to data sheet for details

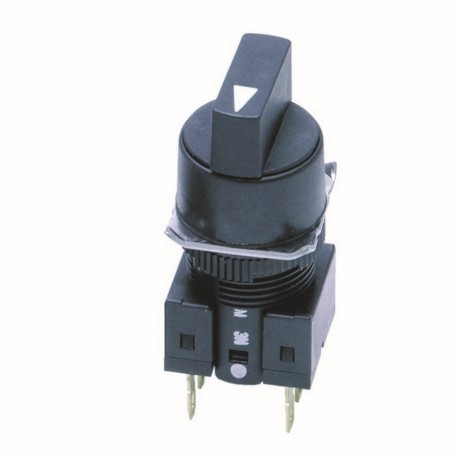

A165S-T3M-2 A16S7018H A165ST3M2 OMRON Selector switch, complete, dia. 16 mm, non-illuminated, lever-type, ro..
A165S-T3M-2
A16S7018H
A165ST3M2
OMRON
5 Pcs.
Selector switch, complete, dia. 16 mm, non-illuminated, lever-type, round, 3 notches, manual reset, IP65, contact block DPDT, terminal a soldier
Selector switch complete, dia. 16 mm, non-illuminated, lever type, round, 3 notches, manual reset, IP65, DPDT contact block, solder terminal
Automation > Selector switch, complete
A16
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Lighted and non-lighted models available
- Automatic and manual models available
- Modular construction, snap-in switch unit
- Oil-resistant IP65 models
- UL and cUL approved, conforms to EN60947-5-1 and IEC947-5-1
| Feature Name | Feature Value |
|---|---|
| Colour front ring (EF002429) | Black |
| Colour button (EF000190) | Black |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Material front ring (EF005972) | Plastic |
| Type of control element (EF006976) | Rotating button |
| Type of electric connection (EF003961) | Other |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | No |
| Switching function latching (EF007447) | Yes |
| Suitable for lighting (EF001142) | No |
| With light source (EF005905) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of switch positions (EF000231) | 3 |
| Height opening (EF004778) | 16 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Width opening (EF004565) | 16 mm |
| Hole diameter (EF000079) | 16 mm |
