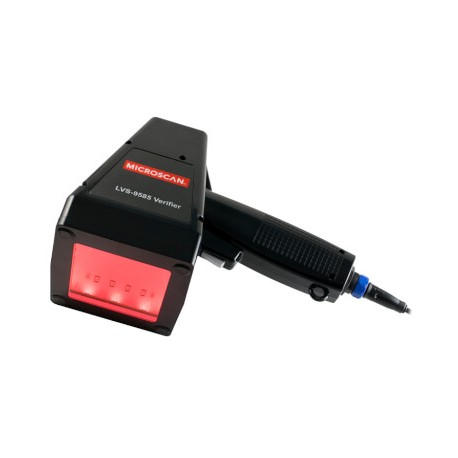

OMRON 98-SOF0056 98-SOF0056 AA053345D 98SOF0056,1 OMRON LVS-95xx Software Upgrade Option: Automatic Login Feature View larger
Images are for illustrative purposes only. Please refer to data sheet for details

98-SOF0056 AA053345D 98SOF0056,1 OMRON LVS-95xx Software Upgrade Option: Automatic Login Feature

98-SOF0056

AA053345D

98SOF0056.1

OMRON

1 Pcs.

LVS-95xx Software Upgrade Option: Automatic Login Feature

Automation > Accessories/spare parts for sensor technology
Accessories for BarCode Readers and Smart Cameras

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

LVS-9585 Handheld DPM Barcode Verifier

The LVS-9585 handheld DPM barcode verifier adds advanced lighting options and powerful software functionality. The new auto-find feature enables users to automatically find the DPM symbol within the verifier field of view, and cycle through the lighting settings to find the lighting type that works best with the specific DPM marking and material substrate. The LVS-9585 can test both DPM parts as well as printed labels to a broad variety of global application standards, and provides comprehensive quality analysis and reporting features.

  • Verify a broad variety of direct part marks as well as 1D and 2D printed barcodes with a single model
  • Software automatically selects best lighting performance from integrated red or white dome and 30° angle lighting
  • Validates printed barcodes to ISO/IEC, ANSI, GS1, and UDI print quality standards
  • Validates direct part marks (DPM) to ISO, MIL-STD-130, and GS1 standards
  • Software options include multi-sector for verification of multiple barcodes and GS1 AI content check
  • 21 CFR Part 11 compliant-ready
  • Supports 15 languages with the ability to add more
  • Export verification reports to Excel or SQL database
  • Manage operator permissions using LVS-95XX software or using Microsoft Active Directory
  • Includes NIST-Traceable Calibrated Conformance Standard Test Card for calibrating the system
  • Optional adjustable mounting stand

Inspection
Inspects all nine of the ISO (ANSI) parameters in linear (1D) codes, plus added features of determining blemishes and human readable validation. The LVS-9585 also verifies 2D codes (including multi-row and matrix codes) and reports all parameters as specified in the applicable ISO/IEC and MIL-STD-130N specifications.

Detailed Reporting
Analysis is color coded to show exactly where the problem is located within the barcode, and sections of the barcode can be analyzed to determine how to solve the problem.

High-Resolution Inspection
High-resolution inspection of the barcode is possible due to the use of a 5.0 megapixel high resolution camera, which allows reading and analyzing every two thousandth of an inch (.002"/.05 mm) of the barcode height; this exceeds the minimum ten-scan average required by ISO.

Advanced Technology
Sensor technology allows more detailed analysis of the barcode, and makes reading of small and truncated codes possible, accurate and easy.

EAN/UPC NIST Traceable Calibrated Conformance Standard Test Card
The LVS-9585 is supplied with a NIST traceable calibrated conformance standard test card to ensure that the system is always within a known calibration standard.

Ordering information

BarcodeVerifier

Description Order code
LVS-9585 Handheld, 1D, 2D & DPM Dome and30 degree lighting 9585-DPM
LVS-9585 Handheld, 1D, 2D & DPM Dome and30 degree lighting, high density 9585-DPM-HD

License upgrade

Licensedfeatures on the LVS-9585 are field upgradable by purchasing a licenseupgrade:

License upgrade Order code
LVS-95xx Software Upgrade Option: AutomaticLogin Feature 98-SOF0056
Software Upgrade Option: EAIV (Enhanced ApplicationIdentifier Verification) 98-SOF0088

Accessories

Testcards

Description Order code
LVS Conformance Test Card, Datamatrix undated 98-CAL010-01
LVS Calibration Conformance Test Card, 9570/9580/9510EAN/UPC undated 98-CAL020-01

IQ/OQ

Description Order code
Validation IQ-OQ Guidelines for v.4.3 and latersoftware (with 25 test cards) 98-LVS0077
LVS-95XX Validation Test Cards (IQ-OQ ChallengeLabels) for use with 98-LVS0077 98-LVS-VTC

Specifications

Depth 139.7 mm (5.5 inches)
Width 120.6 mm (4.75 inches)
Height 215.9 mm (8.5 inches)
Unpackaged Weight 0.68 kg (1lb. 8 oz.)
Shipping weight
2
Includesall items packaged in shipping box, such as cables, manuals, etc.
 Approx. 1.51 kg (3 lbs. 5oz)
Field of View 76 mm (3.0 inches) horizontal
57.15 mm (2.2 inches) vertical
Video Camera

5.0 megapixel

Object distance:contact
Light Source Red Dome (660 nm); White Dome, 30° Angle
Electrical USB powered 5 VDC @ 180 mA
Operating Temperature 4° C (40° F) to 46° C (115° F)
Relative Humidity 20% to 80% (operating)
Storage 20% to 95% (non-condensing)
Calibration EAN/UPC Calibrated Conformance Test Card (includedwith system)
ISO Conformance Standards

ISO/IEC 15415, 15416, 15418

ISO/IEC15426-1, 15426-2

ISO/IEC TR 29158 (DPM Cat 0, 1, 2)

Allsupported ISO/IEC Symbology Specifications
Minimum PC Requirements

Windows® 7, Windows® 8.1 or Windows® 10

Intel®Core™ i3 or higher

4 GB RAM

800 × 600 screen resolution
