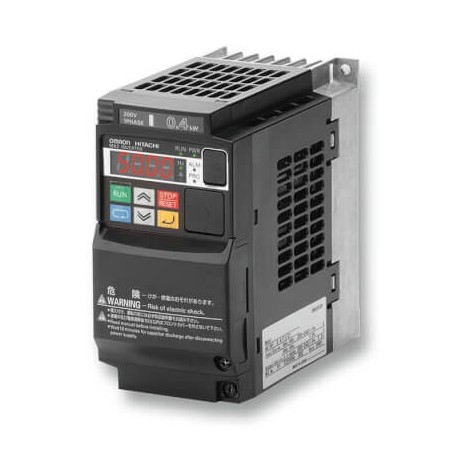

3G3MX2-A2002-E 379063 3G3MX2A2002ECHN OMRON MX2 three-Phase, 200-240VAC, 0.2/0.4 KW, 1,6/1,9 A(HD/ND), vector
3G3MX2-A2002-E
379063
3G3MX2A2002ECHN
OMRON
1 Pcs.
Automation > Frequency converter less than 1 kV
MX2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for advanced motor control, this Omron 3G3MX2-A2002-E inverter drive provides vector regulation for standard and permanent magnet motors. Compact frequency converters are commonly integrated into machine automation to control speeds and torque dynamically.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Inverter control method: Open loop V/f, Open loop vector
- Drive supply voltage: 230 V three phase
- Max. motor output at constant torque (HD): 0.2 kW
- Max. motor output at variable torque (ND): 0.4 kW
- Degree of protection (IP): IP20
- Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
- Regenerative solutions: As inverter option
- Communication port(s): MODBUS Slave, Serial RS-485, USB
- Height: 128 mm
- Width: 68 mm
- Depth: 109 mm
- Weight: 1000 g
More info
▲Specifications
| Inverter control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 0.2 kW |
| Max. motor output at variable torque (ND) | 0.4 kW |
| Built in EMC filter | |
| Degree of protection (IP) | IP20 |
| Finless type | |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height | 128 mm |
| Width | 68 mm |
| Depth | 109 mm |
| Weight | 1000 g |
