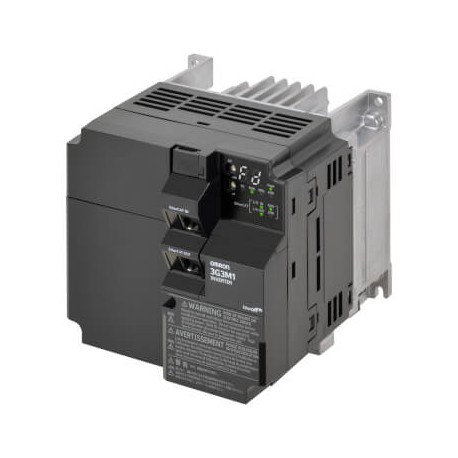

OMRON 3G3M1-AB022-ECT 3G3M1-AB022-ECT 3G3M9462C 3G3M1AB022ECT OMRON M1 AC Drive, 2.2/2.7 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 1~ .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-AB022-ECT 3G3M9462C 3G3M1AB022ECT OMRON M1 AC Drive, 2.2/2.7 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 1~ ..

3G3M1-AB022-ECT

3G3M9462C

3G3M1AB022ECT

OMRON

1 Pcs.

M1 AC Drive, 2.2/2.7 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

AC Drive unit part number 3G3M1-AB022-ECT manufactured by Omron adjusts the rotational velocity of electric motors by altering the frequency and magnitude of the supplied voltage. Such drives are widely implemented in factory automation to control machine cycles, pumps, and material handling systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 1
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V single phaseMax. motor output at constant torque2.2 kWMax. motor output at variable torque2.7 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)EtherCAT Slave, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)140 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1700 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
