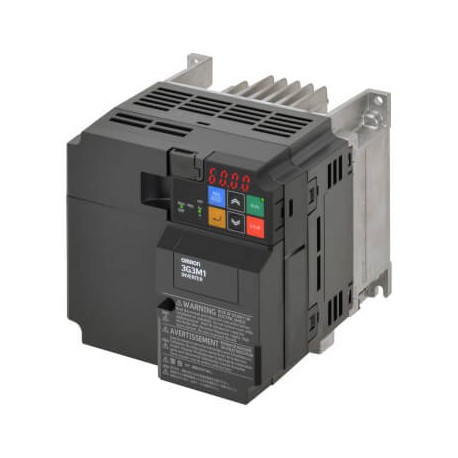

3G3M1-AB022 3G3M9431C 3G3M1AB022 OMRON M1 AC Drive, 2.2/2.7 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 1~ input, ..
3G3M1-AB022
3G3M9431C
3G3M1AB022
OMRON
1 Pcs.
M1 AC Drive, 2.2/2.7 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteMore info
▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V single phaseMax. motor output at constant torque2.2 kWMax. motor output at variable torque2.7 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)140 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1700 gFinless type
