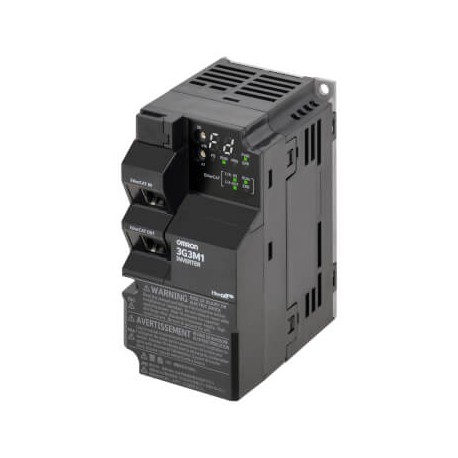

OMRON 3G3M1-AB004-ECT 3G3M1-AB004-ECT 3G3M9459C 3G3M1AB004ECT OMRON M1 AC Drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-AB004-ECT 3G3M9459C 3G3M1AB004ECT OMRON M1 AC Drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, ..

3G3M1-AB004-ECT

3G3M9459C

3G3M1AB004ECT

OMRON

1 Pcs.

M1 AC Drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as an Omron M1 AC Drive, part number 3G3M1-AB004-ECT delivers compact frequency conversion for single-phase input to three-phase motor applications. These general-purpose drives are widely applied in light industrial machinery, packaging systems, and automated actuators to maintain consistent operational speeds.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 1
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V single phaseMax. motor output at constant torque0.4 kWMax. motor output at variable torque0.55 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)EtherCAT Slave, USBCommunication option(s)NoneProduct Height (unpacked)127 mmProduct Width (unpacked)68 mmProduct Depth (unpacked)120 mmProduct Weight (unpacked)700 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
