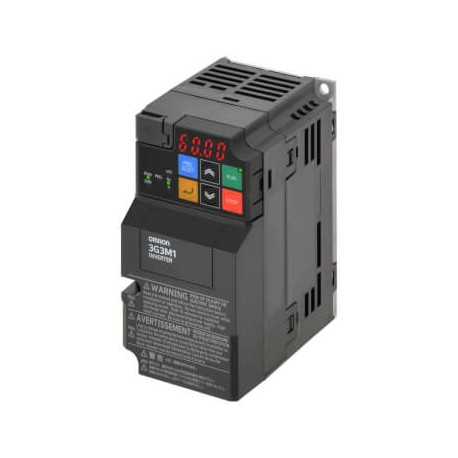

OMRON 3G3M1-AB002 3G3M1-AB002 3G3M9427E 3G3M1AB002 OMRON M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/1.9 A (HD/ND), 200 VAC, 1~ input.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-AB002 3G3M9427E 3G3M1AB002 OMRON M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/1.9 A (HD/ND), 200 VAC, 1~ input..

3G3M1-AB002

3G3M9427E

3G3M1AB002

OMRON

1 Pcs.

M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/1.9 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Omron, the 3G3M1-AB002 AC drive supplies precise frequency and voltage modulation for electric motors in automated industrial environments. Compact alternating current drives regulate motor velocity to ensure smooth operation across various mechanical manufacturing tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 1
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V single phaseMax. motor output at constant torque0.2 kWMax. motor output at variable torque0.4 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)127 mmProduct Width (unpacked)68 mmProduct Depth (unpacked)98 mmProduct Weight (unpacked)500 gFinless type
