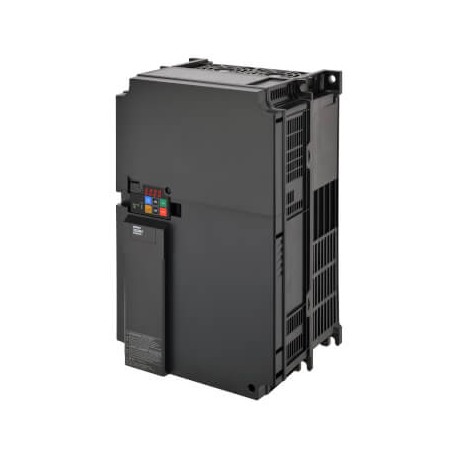

OMRON 3G3M1-A4185 3G3M1-A4185 3G3M9443G 3G3M1A4185 OMRON M1 AC Drive, 18.5/22 kW (HD/ND), 39/45 A (HD/ND), 400 VAC, 3~ input, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A4185 3G3M9443G 3G3M1A4185 OMRON M1 AC Drive, 18.5/22 kW (HD/ND), 39/45 A (HD/ND), 400 VAC, 3~ input, ..

3G3M1-A4185

3G3M9443G

3G3M1A4185

OMRON

1 Pcs.

M1 AC Drive, 18.5/22 kW (HD/ND), 39/45 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron M1 AC drive, designated as model 3G3M1-A4185, serves as a frequency inverter designed to regulate industrial electric motor speeds and enhance overall process efficiency. These drives are routinely implemented in centrifugal pumps, fans, and assembly line conveyors to maintain precise operational control and reduce mechanical wear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency: 50/60 Hz
  • Degree of protection (IP): IP20
  • Number of phases input: 3
  • Number of phases output: 3
  • Supporting protocol for PROFIsafe: No
  • Supporting protocol for PROFIBUS: No
  • Supporting protocol for DeviceNet Safety: No
  • Supporting protocol for TCP/IP: No
  • Supporting protocol for BACnet: No
  • Supporting protocol for other bus systems: Yes
  • Supporting protocol for Foundation Fieldbus: No
  • Supporting protocol for SafetyBUS p: No
  • Supporting protocol for SERCOS: No
  • Supporting protocol for Modbus: Yes
  • Supporting protocol for KNX: No
  • Application in industrial area permitted: Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage400 V three phaseMax. motor output at constant torque18.5 kWMax. motor output at variable torque22 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)400 mmProduct Width (unpacked)250 mmProduct Depth (unpacked)203 mmProduct Weight (unpacked)11000 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
