View larger
Images are for illustrative purposes only. Please refer to data sheet for details

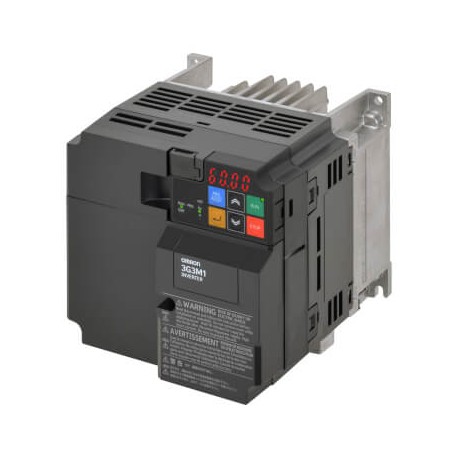

3G3M1-A4040 3G3M9438M 3G3M1A4040 OMRON M1 AC Drive, 4.0/5.5 kW (HD/ND), 9.2/11.1 A (HD/ND), 400 VAC, 3~ inpu..
3G3M1-A4040
3G3M9438M
3G3M1A4040
OMRON
1 Pcs.
M1 AC Drive, 4.0/5.5 kW (HD/ND), 9.2/11.1 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage400 V three phaseMax. motor output at constant torque4.0 kWMax. motor output at variable torque5.5 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)140 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1800 gFinless type
