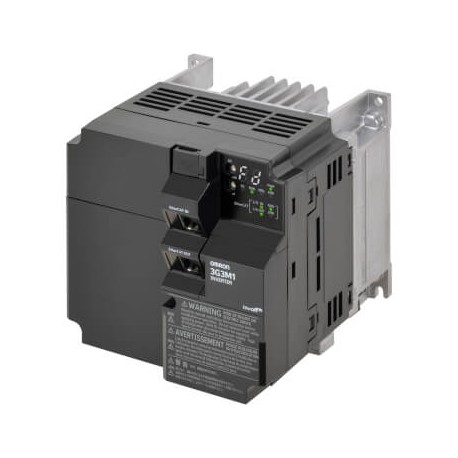

OMRON 3G3M1-A4030-ECT 3G3M1-A4030-ECT 3G3M9468B 3G3M1A4030ECT OMRON M1 AC Drive, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A4030-ECT 3G3M9468B 3G3M1A4030ECT OMRON M1 AC Drive, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3..

3G3M1-A4030-ECT

3G3M9468B

3G3M1A4030ECT

OMRON

1 Pcs.

M1 AC Drive, 3.0/4.0 kW (HD/ND), 7.2/8.8 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as an Omron M1 AC Drive, part number 3G3M1-A4030-ECT provides precise speed and frequency modulation for three-phase electric motors. Frequency converters of this class are standard in machine building and automated conveyor technology to ensure smooth acceleration, deceleration, and dynamic process control.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage400 V three phaseMax. motor output at constant torque3.0 kWMax. motor output at variable torque4.0 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)EtherCAT Slave, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)140 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1800 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
