OMRON 3G3M1-A4022 3G3M1-A4022 3G3M9436D 708928 OMRON M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OL.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

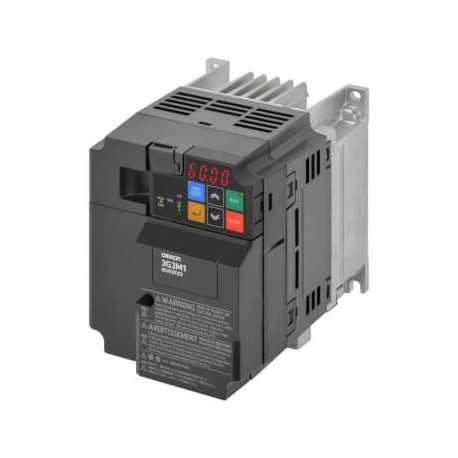

3G3M1-A4022 3G3M9436D 708928 OMRON M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OL..

3G3M1-A4022

3G3M9436D

3G3M1A4022

OMRON

1 Pcs.

M1 AC Drive, 2.2/3.0 kW (HD/ND), 5.5/6.9 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron M1 AC Drive (3G3M1-A4022) is an industrial frequency converter designed to precisely regulate motor speed and torque in automated mechanical systems. This unit manages three-phase electrical input to deliver variable frequency output for induction, asynchronous, and permanent magnet motors across various production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Drive supply voltage: 400 V three phase
  • Max. motor output at constant torque: 2.2 kW
  • Max. motor output at variable torque: 3 kW
  • Degree of protection (IP): IP20
  • Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
  • Communication port(s): MODBUS Slave, Serial RS-485, USB
  • Product Height (unpacked): 130 mm
  • Product Width (unpacked): 110 mm
  • Product Depth (unpacked): 156 mm
  • Product Weight (unpacked): 1400 g
  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No

More info

▲

Specifications

Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control
Drive supply voltage400 V three phase
Max. motor output at constant torque2.2 kW
Max. motor output at variable torque3 kW
Built in EMC filter
Degree of protection (IP)IP20
Compatible motor typeInduction or asynchronous motor, Permanent magnet motor
Communication port(s)MODBUS Slave, Serial RS-485, USB
Communication option(s)None
Product Height (unpacked)130 mm
Product Width (unpacked)110 mm
Product Depth (unpacked)156 mm
Product Weight (unpacked)1400 g
Finless type

Accessories

AX-FER2102-PEFerrite choke, 21mm diameter, for 2.2kW inverters and below
AX-FIC4011-SEM1 RFI filter 11 A, 400 VAC, three phase.
AX-FIC4011-SE-LLLow Leakage M1 RFI filter 11 A, 400 VAC, three phase.
AX-M1-S2M1 Shield Clamp Size 2 (AB015 & A2015/A2022 & A4004/A4007/A4015/A4022)
AX-RAI01630090-DEAC input reactor, 9 A, 1.63 mH, for 2.2 to 3.0 kW sizes, 400 VAC, 3 phase
AX-RAO11800053-DEAC output reactor, 5.3 A, 11.8 mH, for 2.2 kW , 400 VAC, 3 phase
AX-RC06400116-DEDC link reactor, 11.6 A, 6.4 mH, for 4 kW, 400 VAC
AX-RC10100069-DEDC link reactor, 6.9 A, 10.1 mH, for 2.2 kW, 400 VAC
AX-REM00K1200-IEBraking resistor, 200 ohm, 100 W nominal
AX-REM00K3160-IEBraking resistor, 300 W, 160 ohm nominal
AX-REM00K4200-IEBraking resistor, 400 W, 200 ohm nominal

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
