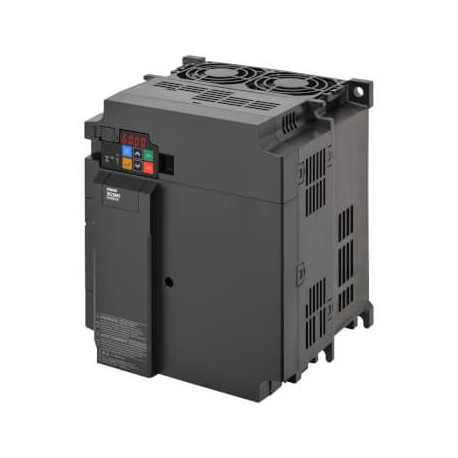

OMRON 3G3M1-A2110 3G3M1-A2110 3G3M9454B 3G3M1A2110 OMRON M1 AC Drive, 11/15 kW (HD/ND), 47/56 A (HD/ND), 200 VAC, 3~ input, OL.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A2110 3G3M9454B 3G3M1A2110 OMRON M1 AC Drive, 11/15 kW (HD/ND), 47/56 A (HD/ND), 200 VAC, 3~ input, OL..

3G3M1-A2110

3G3M9454B

3G3M1A2110

OMRON

1 Pcs.

M1 AC Drive, 11/15 kW (HD/ND), 47/56 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron 3G3M1-A2110 M1 AC drive manages motor frequencies and torque output, serving as a core component for automated production machinery requiring consistent speed regulation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: 3G3M1-A2110
  • Catalogue code: 3G3M9454B

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque11 kWMax. motor output at variable torque15 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)260 mmProduct Width (unpacked)220 mmProduct Depth (unpacked)203 mmProduct Weight (unpacked)5300 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
