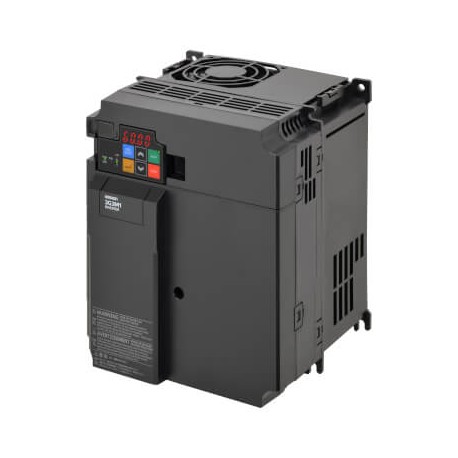

OMRON 3G3M1-A2055 3G3M1-A2055 3G3M9452F 3G3M1A2055 OMRON M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A2055 3G3M9452F 3G3M1A2055 OMRON M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, ..

3G3M1-A2055

3G3M9452F

3G3M1A2055

OMRON

1 Pcs.

M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron 3G3M1-A2055 is a high-performance Omron M1 AC Drive designed to manage motor speed profiles in industrial automation environments. AC drives serve a critical role in optimizing electrical energy use and protecting machinery against dynamic mechanical stress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: 3G3M1-A2055
  • Catalogue code: 3G3M9452F
  • Catalogue title: 3G3M1-A2055 3G3M9452F 3G3M1A2055 OMRON M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, ..
  • Product description: Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque5.5 kWMax. motor output at var
  • Manufacturer summary: M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque5.5 kWMax. motor output at variable torque7.5 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)220 mmProduct Width (unpacked)180 mmProduct Depth (unpacked)171 mmProduct Weight (unpacked)3800 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
