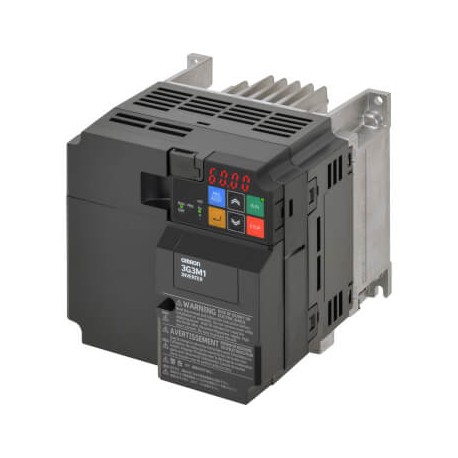

OMRON 3G3M1-A2037 3G3M1-A2037 3G3M9451H 3G3M1A2037 OMRON M1 AC Drive, 3.7/5.5 kW (HD/ND), 17.5/19.6 A (HD/ND), 200 VAC, 3~ inp.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A2037 3G3M9451H 3G3M1A2037 OMRON M1 AC Drive, 3.7/5.5 kW (HD/ND), 17.5/19.6 A (HD/ND), 200 VAC, 3~ inp..

3G3M1-A2037

3G3M9451H

3G3M1A2037

OMRON

1 Pcs.

M1 AC Drive, 3.7/5.5 kW (HD/ND), 17.5/19.6 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

AC drive part 3G3M1-A2037 by Omron serves as a frequency converter to regulate motor speed and torque within dynamic industrial drive architectures. Variable frequency drives govern electrical supply parameters to optimize mechanical processes, enhance energy efficiency, and protect machinery during startup sequences.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque3.7 kWMax. motor output at variable torque5.5 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)140 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1700 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
