View larger
Images are for illustrative purposes only. Please refer to data sheet for details

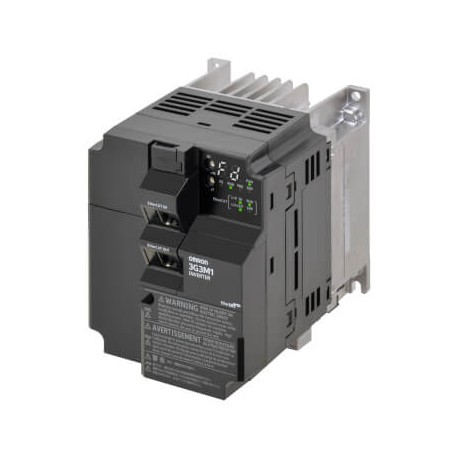

3G3M1-A2022-ECT 3G3M9481M 3G3M1A2022ECT OMRON M1 AC Drive, 2.2/3.0 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 3~ ..
3G3M1-A2022-ECT
3G3M9481M
3G3M1A2022ECT
OMRON
1 Pcs.
M1 AC Drive, 2.2/3.0 kW (HD/ND), 11/12 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque2.2 kWMax. motor output at variable torque3.0 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)EtherCAT Slave, USBCommunication option(s)NoneProduct Height (unpacked)130 mmProduct Width (unpacked)110 mmProduct Depth (unpacked)156 mmProduct Weight (unpacked)1400 gFinless type
| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | Yes |
| Number of analogue inputs (EF001994) | 1 |
| Max. output frequency (EF007350) | 590 Hz |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of digital outputs (EF001993) | 2 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Max. output at linear load at rated output voltage (EF007364) | 2.2 kW |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Width (EF000008) | 110 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Max. output at quadratic load at rated output voltage (EF007366) | 3 kW |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Nominal output current I2N (EF009561) | 11 A |
| Number of digital inputs (EF001992) | 9 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 130 mm |
| Max. output voltage (EF009560) | 240 V |
| Depth (EF000049) | 156 mm |
| Mains voltage (EF006780) | 200 V |
