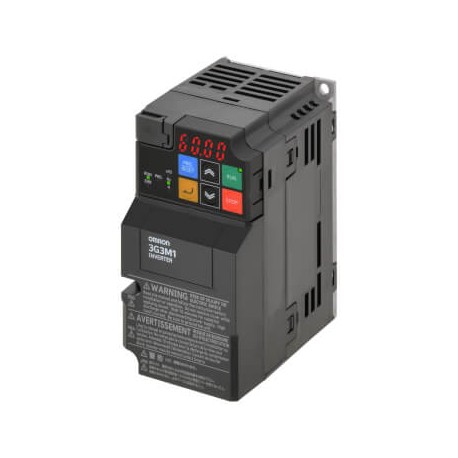

OMRON 3G3M1-A2007 3G3M1-A2007 3G3M9448H 3G3M1A2007 OMRON M1 AC Drive, 0.75/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 3~ inpu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3M1-A2007 3G3M9448H 3G3M1A2007 OMRON M1 AC Drive, 0.75/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 3~ inpu..

3G3M1-A2007

3G3M9448H

3G3M1A2007

OMRON

1 Pcs.

M1 AC Drive, 0.75/1.1 kW (HD/ND), 5.0/6.0 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz

Automation > Frequency converter less than 1 kV

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron 3G3M1-A2007 is an AC drive designed to regulate the speed and torque of three-phase electric motors in industrial settings. Frequency converters optimize machine performance, reduce mechanical stress on connected equipment, and improve overall energy efficiency in automated processes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Mains frequency (EF006783): 50/60 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Number of phases input (EF007117): 3
  • Number of phases output (EF006998): 3
  • Supporting protocol for PROFIsafe (EF007526): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Supporting protocol for DeviceNet Safety (EF007520): No
  • Supporting protocol for TCP/IP (EF003050): No
  • Supporting protocol for BACnet (EF011944): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for Foundation Fieldbus (EF007522): No
  • Supporting protocol for SafetyBUS p (EF007527): No
  • Supporting protocol for SERCOS (EF006657): No
  • Supporting protocol for Modbus (EF003057): Yes
  • Supporting protocol for KNX (EF003055): No
  • Application in industrial area permitted (EF007294): Yes

More info

▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque0.75 kWMax. motor output at variable torque1.1 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)127 mmProduct Width (unpacked)68 mmProduct Depth (unpacked)145 mmProduct Weight (unpacked)800 gFinless type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
