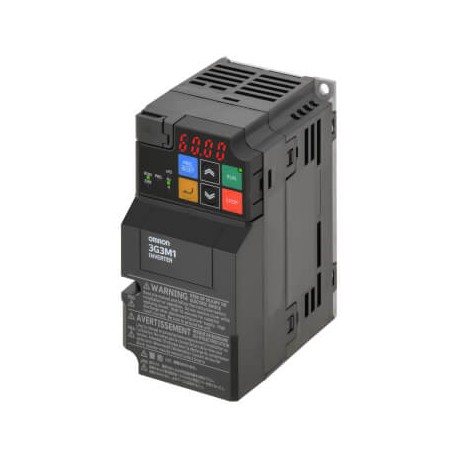

3G3M1-A2004 3G3M9447M 3G3M1A2004 OMRON M1 AC Drive, 0.4/0.75 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 3~ inpu..
3G3M1-A2004
3G3M9447M
3G3M1A2004
OMRON
1 Pcs.
M1 AC Drive, 0.4/0.75 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron 3G3M1-A2004 is an AC drive utilized in machine automation to manage motor performance parameters, ensuring smooth acceleration, deceleration, and operational stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains frequency (EF006783): 50/60 Hz
- Degree of protection (IP) (EF005474): IP20
- Number of phases input (EF007117): 3
- Number of phases output (EF006998): 3
- Supporting protocol for PROFIsafe (EF007526): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for DeviceNet Safety (EF007520): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for BACnet (EF011944): No
- Supporting protocol for other bus systems (EF003062): Yes
- Supporting protocol for Foundation Fieldbus (EF007522): No
- Supporting protocol for SafetyBUS p (EF007527): No
- Supporting protocol for SERCOS (EF006657): No
- Supporting protocol for Modbus (EF003057): Yes
- Supporting protocol for KNX (EF003055): No
- Application in industrial area permitted (EF007294): Yes
More info
▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque0.4 kWMax. motor output at variable torque0.75 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)127 mmProduct Width (unpacked)68 mmProduct Depth (unpacked)113 mmProduct Weight (unpacked)600 gFinless type
