View larger
Images are for illustrative purposes only. Please refer to data sheet for details

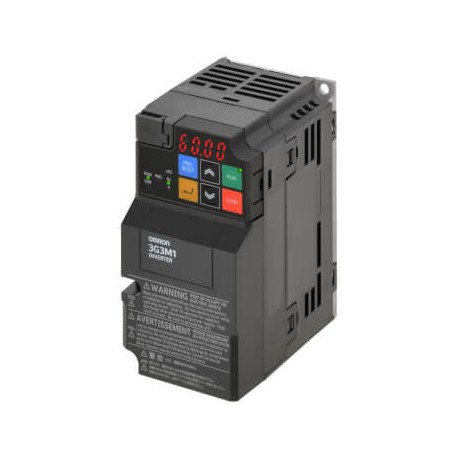

3G3M1-A2002 3G3M9446A 3G3M1A2002 OMRON M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/2.0 A (HD/ND), 200 VAC, 3~ input..
3G3M1-A2002
3G3M9446A
3G3M1A2002
OMRON
1 Pcs.
M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/2.0 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
Automation > Frequency converter less than 1 kV
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Drive control methodClosed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector controlDrive supply voltage230 V three phaseMax. motor output at constant torque0.2 kWMax. motor output at variable torque0.4 kWBuilt in EMC filterDegree of protection (IP)IP20Compatible motor typeInduction or asynchronous motor, Permanent magnet motorCommunication port(s)MODBUS Slave, Serial RS-485, USBCommunication option(s)NoneProduct Height (unpacked)127 mmProduct Width (unpacked)68 mmProduct Depth (unpacked)98 mmProduct Weight (unpacked)500 gFinless type
| Feature Name | Feature Value |
|---|---|
| Mains frequency (EF006783) | 50/60 Hz |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Integrated breaking resistance (EF007293) | Yes |
| Number of analogue inputs (EF001994) | 3 |
| Max. output frequency (EF007350) | 590 Hz |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of digital outputs (EF001993) | 3 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Max. output at linear load at rated output voltage (EF007364) | 0.2 kW |
| Number of analogue outputs (EF001995) | 1 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Width (EF000008) | 68 mm |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Max. output at quadratic load at rated output voltage (EF007366) | 0.4 kW |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Nominal output current I2N (EF009561) | 1.6 A |
| Number of digital inputs (EF001992) | 9 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Height (EF000040) | 127 mm |
| Max. output voltage (EF009560) | 240 V |
| Depth (EF000049) | 98 mm |
| Mains voltage (EF006780) | 200 V |
