View larger
Images are for illustrative purposes only. Please refer to data sheet for details

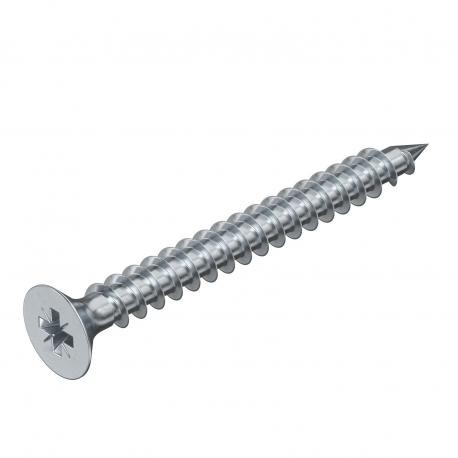

4759 5.0x45 3192458 OBO BETTERMANN Sprint screw countersunk head, cross drive, 5x45mm, Electrogalvanised, ye..
4759 5.0x45
3192458
OBO BETTERMANN
200 Pcs.
Sprint screw countersunk head, cross drive, 5x45mm, Electrogalvanised, yellow passivated, Steel, St
Sprint 4759 Screw 5.0x45, counter-shaped shaft., cross action 5x45mm Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042
Sprint screw, with cross slot. Hardened, electro-galvanized steel coated with Hostaflon (PTFE). Countersunk head with cross groove (screwdriver size 2, except for the Ø of 6 mm which is size 3). The use of SPRINT screws leads to a considerable reduction in screwdriving times compared to conventional systems. This remarkable advantage can be perceived thanks to the thread of the 1-step gripping tip, which makes it easy to enter the 2-step thread. Fields of application: wood, chipboard, cardboard panchas, plaster, plastic dowels.
Automation > Chipboard screw
Washers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Hardened steel, electrogalvanised and yellow passivated, as well as Hostaflon-coated, countersunk head with Philips head (Pozidrive size 2 except Ø 6 mm Pozidrive size 3).
The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.
Areas of use: wood, chipboard, Rigips panels, plastic anchors.
The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.
Areas of use: wood, chipboard, Rigips panels, plastic anchors.
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Surface treatment (EF025109) | Coated |
| Hardened (EF004739) | Yes |
| Countersunk head (EF013941) | Yes |
| Screwing system (EF000013) | Pozidriv PZ |
| Head diameter (EF001001) | 9.2 mm |
| Length (EF001438) | 45 mm |
