OBO BETTERMANN 4759 5.0x30 4759 5.0x30 3192415 OBO BETTERMANN Sprint screw countersunk head, cross drive, 5x30mm, Electrogalvanised, ye.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4759 5.0x30 3192415 OBO BETTERMANN Sprint screw countersunk head, cross drive, 5x30mm, Electrogalvanised, ye..

4759 5.0x30

3192415

OBO BETTERMANN

200 Pcs.

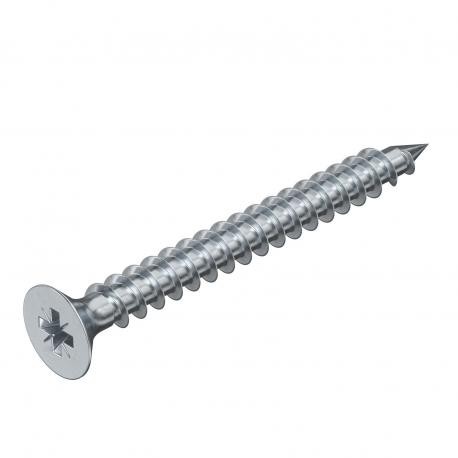

Sprint screw countersunk head, cross drive, 5x30mm, Electrogalvanised, yellow passivated, Steel, St Sprint 4759 Screw 5.0x30, counter-shaped shaft., cross action 5x30mm Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042 Sprint screw, with cross slot. Hardened, electro-galvanized steel coated with Hostaflon (PTFE). Countersunk head with cross groove (screwdriver size 2, except for the Ø of 6 mm which is size 3). The use of SPRINT screws leads to a considerable reduction in screwdriving times compared to conventional systems. This remarkable advantage can be perceived thanks to the thread of the 1-step gripping tip, which makes it easy to enter the 2-step thread. Fields of application: wood, chipboard, cardboard panchas, plaster, plastic dowels.

Automation > Chipboard screw
Washers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann Sprint screw countersunk head, cross drive, 5x30mm, Electrogalvanised serves as a vital connecting element in industrial hardware applications requiring precision seating and robust material retention. Maintenance teams and builders integrate these parts into control panels and support frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Steel
  • Surface protection (EF000139): Galvanic/electrolytic zinc plated
  • Surface treatment (EF025109): Coated
  • Hardened (EF004739): Yes
  • Countersunk head (EF013941): Yes
  • Screwing system (EF000013): Pozidriv PZ
  • Head diameter (EF001001): 9.2 mm
  • Length (EF001438): 30 mm

More info

▲
Hardened steel, electrogalvanised and yellow passivated, as well as Hostaflon-coated, countersunk head with Philips head (Pozidrive size 2 except Ø 6 mm Pozidrive size 3).
The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.
Areas of use: wood, chipboard, Rigips panels, plastic anchors.
