View larger
Images are for illustrative purposes only. Please refer to data sheet for details

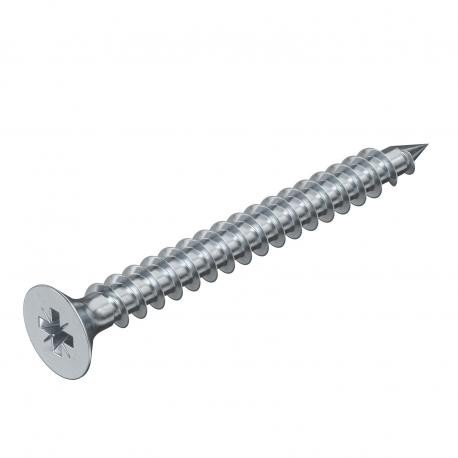

4759 4.0x35 3192237 OBO BETTERMANN Sprint screw countersunk head, cross drive, 4x35mm, Electrogalvanised, ye..
4759 4.0x35
3192237
OBO BETTERMANN
200 Pcs.
Sprint screw countersunk head, cross drive, 4x35mm, Electrogalvanised, yellow passivated, Steel, St
Sprint 4759 4.0x35 countersink counter, cross action 4x35mm steel, St, electrozinc, EN ISO 19598 / EN ISO 4042
Sprint screw, with Philips slot. Hardened steel, electrogalvanised and Hostaflon-coated. Countersunk head with Phillips head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable benefit is achieved by the point with the first thread, which leads onto the double thread beyond.Areas of use: wood, chipboard, Rigips panels, plastic anchors.
Automation > Chipboard screw
Washers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Dimension | 4x35mm |
|---|---|
| Dimension D | 4 mm |
| Dimension L | 35 mm |
| Hardened | yes |
| Head diameter | 7,5 mm |
| Head shape | Countersunk head |
|---|---|
| Length | 35 mm |
| Material | Steel |
| Screw system | Pozidrive PZ |
| Surface | Electrogalvanized |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Surface treatment (EF025109) | Coated |
| Hardened (EF004739) | Yes |
| Countersunk head (EF013941) | Yes |
| Screwing system (EF000013) | Pozidriv PZ |
| Head diameter (EF001001) | 7.5 mm |
| Length (EF001438) | 35 mm |
