View larger
Images are for illustrative purposes only. Please refer to data sheet for details

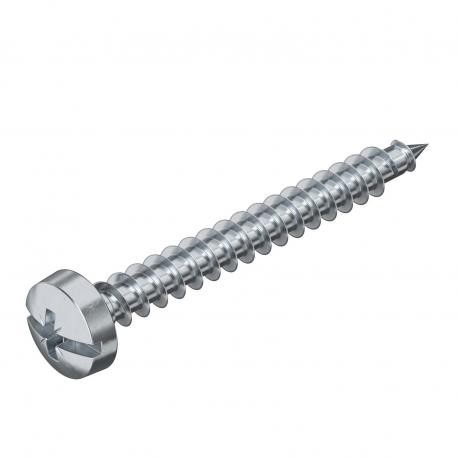

4758 4.0x40 3195260 OBO BETTERMANN Golden Sprint screw panhead, +/- slot drive, 4x40mm, Electrogalvanised, y..
4758 4.0x40
3195260
OBO BETTERMANN
200 Pcs.
Golden Sprint screw panhead, +/- slot drive, 4x40mm, Electrogalvanised, yellow passivated, Steel, St
Sprint 4758 Screw 4.0x40, flat head, action.+/- slot 4x40mm Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042
Sprint screw, with Philips screw. Hardened steel, electrogalvanised and Hostaflon-coated. Pan head with combined Phillips and slotted head (Pozidriv size 2 except Ø 6 mm Pozidriv size 3).The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.Areas of use: wood, chipboard, Rigips panels, plastic anchors.
Automation > Chipboard screw
Washers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Dimension | 4x40mm |
|---|---|
| Dimension D | 4 mm |
| Dimension L | 40 mm |
| Hardened | yes |
| Head diameter | 7,5 mm |
| Head shape | Panhead |
| Length | 40 mm |
|---|---|
| Material | Steel |
| Screw system | Combination slot |
| Surface | Electrogalvanized |
| Thickness | 4 mm |
| Two-compartment | yes |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Surface treatment (EF025109) | Coated |
| Hardened (EF004739) | Yes |
| Head form (EF000012) | Pan head |
| Countersunk head (EF013941) | No |
| Screwing system (EF000013) | Other |
| Head diameter (EF001001) | 7.5 mm |
| Length (EF001438) | 40 mm |
