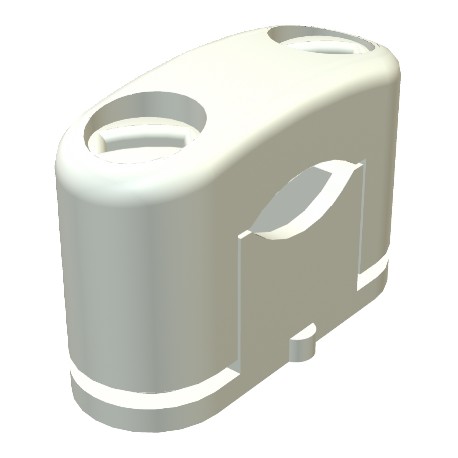

OBO BETTERMANN 3083 LGR 3083 LGR 2124459 OBO BETTERMANN SOM clip , 32-45mm, Light grey, 7035, Duroplast, Aminoplast, type 131.5, UF,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3083 LGR 2124459 OBO BETTERMANN SOM clip , 32-45mm, Light grey, 7035, Duroplast, Aminoplast, type 131.5, UF,..

3083 LGR

2124459

OBO BETTERMANN

20 Pcs.

SOM clip , 32-45mm, Light grey, 7035, Duroplast, Aminoplast, type 131.5, UF, Typ 131.5 SOM clip, single, hardly flammable. With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.Hardly flammable.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann 3083 LGR SOM clip organizes heavy wire bundles and rigid installation pipes safely along flat surfaces inside electrical rooms and manufacturing plants. Plastic conduit clips deliver high insulation properties and structural reliability in routing applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bolt: M8 x 40
  • Clamping range D, max.: 45 mm
  • Clamping range D, min.: 32 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1608 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: 32-45mm
  • Dimension b: 21 mm
  • Dimension b1: 6,5 mm
  • Dimension d max.: 45 mm
  • Dimension d min.: 32 mm
  • Dimension H1: 12 mm
  • Dimension H2: 54 mm
  • Dimension H3: 57 mm
  • Dimension L: 77 mm
  • Fastening type: Screw hole
  • Halogen-free: yes

More info

▲
BoltM8 x 40
Clamping range D, max.45 mm
Clamping range D, min.32 mm
CO2 Footprint (GWP) Cradle-to-Gate0,1608 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension32-45mm
Dimension b21 mm
Dimension b16,5 mm
Dimension d max.45 mm
Dimension d min.32 mm
Dimension H112 mm
Dimension H254 mm
Dimension H357 mm
Dimension L77 mm
Fastening typeScrew hole
Halogen-freeyes
MaterialDuroplast, Aminoplast Typ 131.5
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areayes
UV-resistantno
Version forClosed
