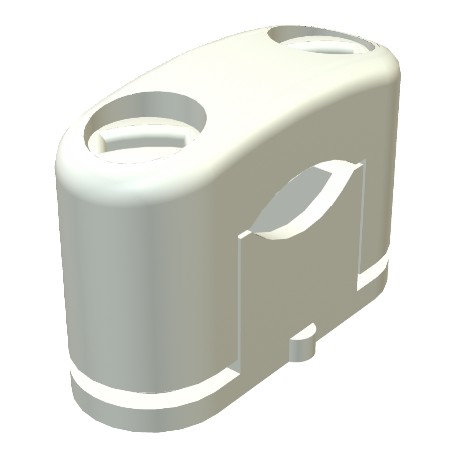

OBO BETTERMANN 3082 LGR 3082 LGR 2124343 OBO BETTERMANN SOM clip , 24-34mm, Light grey, 7035, Polystyrene, PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3082 LGR 2124343 OBO BETTERMANN SOM clip , 24-34mm, Light grey, 7035, Polystyrene, PS

3082 LGR

2124343

OBO BETTERMANN

25 Pcs.

SOM clip , 24-34mm, Light grey, 7035, Polystyrene, PS SOM clip, single. With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann 3082 LGR SOM clip is designed to secure electrical installation pipes and conduits cleanly against surfaces in industrial buildings and commercial facilities. Cable clips of this variety maintain structured routing and relieve mechanical stress on runs distributed throughout enclosures and raceways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bolt: M8 x 23
  • Clamping range D, max.: 34 mm
  • Clamping range D, min.: 22 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0812 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: 22-34mm
  • Dimension b: 18 mm
  • Dimension b1: 5,2 mm
  • Dimension d max.: 34 mm
  • Dimension d min.: 22 mm
  • Dimension H1: 11 mm
  • Dimension H2: 40 mm
  • Dimension H3: 52 mm
  • Dimension L: 62 mm
  • Fastening type: Screw hole
  • Halogen-free: yes

More info

▲
BoltM8 x 23
Clamping range D, max.34 mm
Clamping range D, min.22 mm
CO2 Footprint (GWP) Cradle-to-Gate0,0812 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension22-34mm
Dimension b18 mm
Dimension b15,2 mm
Dimension d max.34 mm
Dimension d min.22 mm
Dimension H111 mm
Dimension H240 mm
Dimension H352 mm
Dimension L62 mm
Fastening typeScrew hole
Halogen-freeyes
MaterialPolystyrene
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
UV-resistantno
Version forClosed

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
