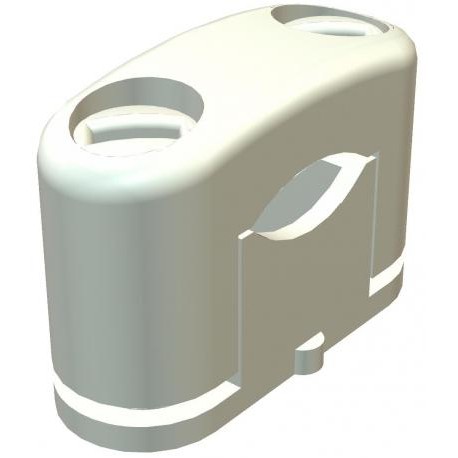

OBO BETTERMANN 3081 LGR 3081 LGR 2124254 OBO BETTERMANN SOM clip , 15-25mm, Light grey, 7035, Polystyrene, PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3081 LGR 2124254 OBO BETTERMANN SOM clip , 15-25mm, Light grey, 7035, Polystyrene, PS

3081 LGR

2124254

OBO BETTERMANN

25 Pcs.

SOM clip , 15-25mm, Light grey, 7035, Polystyrene, PS SOM clip, single. With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann 3081 LGR SOM clip secures routing paths for cables and conduits in commercial and industrial settings where organized surface installation is required. Such mounting clips help maintain structural organization and prevent sagging along long stretches of electrical line runs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bolt: M8 x 23
  • Clamping range D, max.: 25 mm
  • Clamping range D, min.: 15 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0574 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: 15-25mm
  • Dimension b: 17 mm
  • Dimension b1: 5 mm
  • Dimension b2: 7 mm
  • Dimension d max.: 25 mm
  • Dimension d min.: 14 mm
  • Dimension H1: 11,5 mm
  • Dimension H2: 33 mm
  • Dimension H3: 44 mm
  • Dimension L: 51 mm
  • Fastening type: Screw hole

More info

▲
BoltM8 x 23
Clamping range D, max.25 mm
Clamping range D, min.15 mm
CO2 Footprint (GWP) Cradle-to-Gate0,0574 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension15-25mm
Dimension b17 mm
Dimension b15 mm
Dimension b27 mm
Dimension d max.25 mm
Dimension d min.14 mm
Dimension H111,5 mm
Dimension H233 mm
Dimension H344 mm
Dimension L51 mm
Fastening typeScrew hole
Halogen-freeyes
MaterialPolystyrene
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
UV-resistantno
Version forClosed

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
