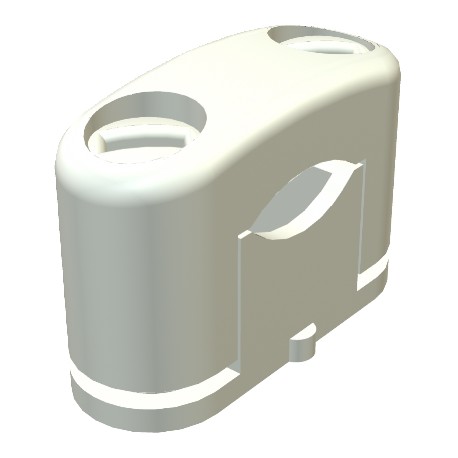

OBO BETTERMANN 3080 LGR 3080 LGR 2124173 OBO BETTERMANN SOM clip , 6-17mm, Light grey, 7035, Polystyrene, PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3080 LGR 2124173 OBO BETTERMANN SOM clip , 6-17mm, Light grey, 7035, Polystyrene, PS

3080 LGR

2124173

OBO BETTERMANN

50 Pcs.

SOM clip , 6-17mm, Light grey, 7035, Polystyrene, PS SOM clip, single. With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann SOM clip fastens electrical cables and conduits neatly along structured building surfaces.

Polymer clips offer non-conductive cable retention suitable for standard commercial and industrial electrical distribution.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bolt: M6 x 18
  • Clamping range D, max.: 17 mm
  • Clamping range D, min.: 6 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0282 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035: 7035
  • Dimension: 6-17mm
  • Dimension b: 14 mm
  • Dimension b1: 4 mm
  • Dimension b2: 5,2 mm
  • Dimension d max.: 17 mm
  • Dimension d min.: 6 mm
  • Dimension H1: 11 mm
  • Dimension H2: 24,5 mm
  • Dimension H3: 35,5 mm
  • Dimension L: 37 mm
  • Fastening type: Screw hole

More info

▲
BoltM6 x 18
Clamping range D, max.17 mm
Clamping range D, min.6 mm
CO2 Footprint (GWP) Cradle-to-Gate0,0282 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension6-17mm
Dimension b14 mm
Dimension b14 mm
Dimension b25,2 mm
Dimension d max.17 mm
Dimension d min.6 mm
Dimension H111 mm
Dimension H224,5 mm
Dimension H335,5 mm
Dimension L37 mm
Fastening typeScrew hole
Halogen-freeyes
MaterialPolystyrene
Number of cables/pipes1
Plastic-coveredno
Suitable in fire protection areano
UV-resistantno
Version forClosed

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
