OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza Plastic fixing
>
2124149
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

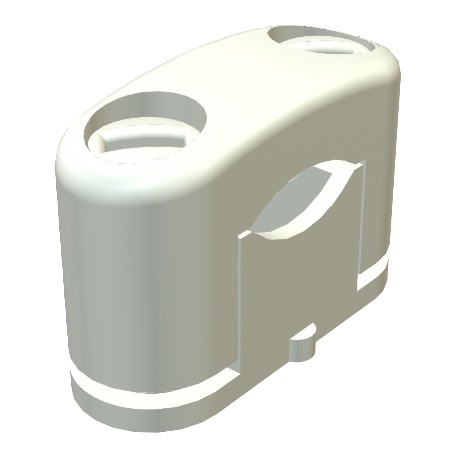

3079 LGR 2124149 OBO BETTERMANN SOM clip , 5-14mm, Light grey, 7035, Polystyrene, PS
3079 LGR
2124149
OBO BETTERMANN
50 Pcs.
SOM clip , 5-14mm, Light grey, 7035, Polystyrene, PS
SOM clip, single. With plastic screws, so corrosion-protected, with slot for fastening with wood screws or 5 mm knock-in anchors.
Cables > Pipe saddle clamp
Pizza Plastic fixing
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bolt | M5 x 14 |
|---|---|
| Clamping range D, max. | 14 mm |
| Clamping range D, min. | 5 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0207 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 5-13mm |
| Dimension b | 12 mm |
| Dimension b1 | 4,2 mm |
| Dimension b2 | 5 mm |
| Dimension d max. | 13 mm |
| Dimension d min. | 5 mm |
| Dimension H1 | 10,5 mm |
| Dimension H2 | 20 mm |
|---|---|
| Dimension H3 | 29 mm |
| Dimension L | 31 mm |
| Fastening type | Screw hole |
| Halogen-free | yes |
| Material | Polystyrene |
| Number of cables/pipes | 1 |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| UV-resistant | no |
| Version for | Closed |
