OBO BETTERMANN 1975 12-15 1975 12-15 2148021 OBO BETTERMANN Snap clip , 12-15mm, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1975 12-15 2148021 OBO BETTERMANN Snap clip , 12-15mm, Light grey, 7035, Polyamide, PA

1975 12-15

2148021

OBO BETTERMANN

100 Pcs.

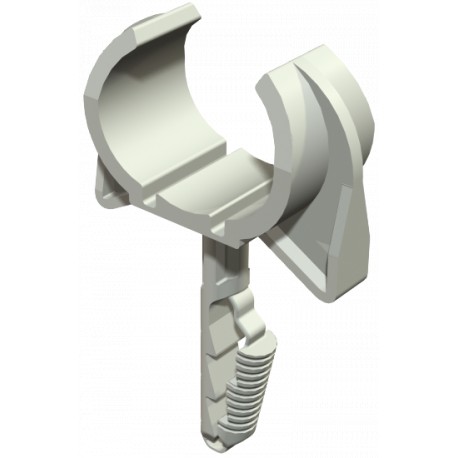

Snap clip , 12-15mm, Light grey, 7035, Polyamide, PA Snap clip. With moulded-on push-fit plug for rapid mounting in concrete walls and masonry.Push plug into hole until the clip makes contact with the surface. When the pipe is pressed into the clip, the arms of the clip grip it.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Obo Bettermann 1975 12-15 Snap clip allows quick and secure mounting of electrical conduits directly into masonry and concrete surfaces. Installers utilize these snap clips to streamline cable management routines.

Current pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breaking load for concrete B25: 90 N
  • Clamping range D, max.: 15 mm
  • Clamping range D, min.: 12 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,011 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: 12-15mm
  • Drill hole depth: 40 mm
  • Drill hole diameter, min.: 6 mm
  • Fastening type: Plug fastening
  • Halogen-free: yes
  • Material: Polyamide
  • Number of cables/pipes: 1
  • Version for: Closed

More info

▲
Breaking load for concrete B2590 N
Clamping range D, max.15 mm
Clamping range D, min.12 mm
CO2 Footprint (GWP) Cradle-to-Gate0,011 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension12-15mm
Drill hole depth40 mm
Drill hole diameter, min.6 mm
Fastening typePlug fastening
Halogen-freeyes
MaterialPolyamide
Number of cables/pipes1
Version forClosed
