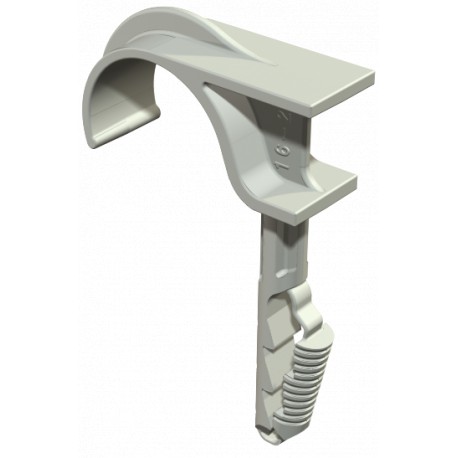

OBO BETTERMANN 1974 16-23 1974 16-23 2197804 OBO BETTERMANN Plug-in clip single, 16-23mm, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1974 16-23 2197804 OBO BETTERMANN Plug-in clip single, 16-23mm, Light grey, 7035, Polyamide, PA

1974 16-23

2197804

OBO BETTERMANN

100 Pcs.

Plug-in clip single, 16-23mm, Light grey, 7035, Polyamide, PA Single push-fit clip. These push-fit clips are used when installing cables and pipes on walls and ceilings and when running flexible pipes on concrete and in the screed. The single push-fit clips can be used instead of nail clips in concrete and aerated concrete. The advantage of the push-fit clips is that they only have to be pushed into the drilled hole. Anchors and bolts are not needed.

Cables > Pipe saddle clamp
Pizza Plastic fixing

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann 1974 16-23 plug-in clip snaps securely into pre-drilled concrete or masonry holes to speed up the mounting of electrical installation pipes. Quick-install plug clips streamline wiring runs across building interiors without requiring traditional screw anchors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breaking load for concrete B25: 50 N
  • Clamping range D, max.: 23 mm
  • Clamping range D, min.: 16 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0134 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: 16-23mm
  • Drill hole depth: 40 mm
  • Drill hole diameter, min.: 6 mm
  • Fastening type: Plug fastening
  • Halogen-free: yes
  • Material: Polyamide
  • Number of cables/pipes: 1
  • Version for: Single-lobe

More info

▲
Breaking load for concrete B2550 N
Clamping range D, max.23 mm
Clamping range D, min.16 mm
CO2 Footprint (GWP) Cradle-to-Gate0,0134 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Dimension16-23mm
Drill hole depth40 mm
Drill hole diameter, min.6 mm
Fastening typePlug fastening
Halogen-freeyes
MaterialPolyamide
Number of cables/pipes1
Version forSingle-lobe

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
