OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Pizza Plastic fixing
>
2148846
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

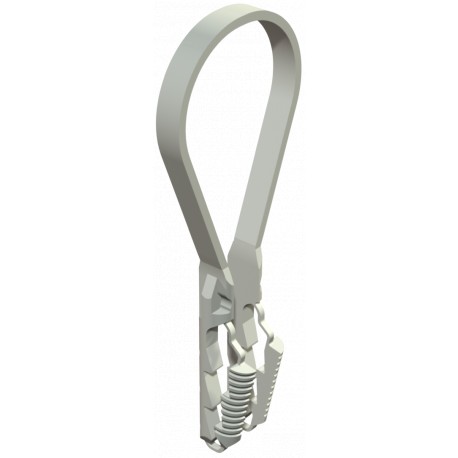

1973 8-28 LGR 2148846 OBO BETTERMANN BKS clamp , 8-28mm, Light grey, 7035, Polyamide, PA
1973 8-28 LGR
2148846
OBO BETTERMANN
100 Pcs.
BKS clamp , 8-28mm, Light grey, 7035, Polyamide, PA
BKS clamp clip. For cables, flexible pipes and all kinds of insulating and armoured steel pipes, suitable for concrete, calcareous limestone and full brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
Cables > Pipe saddle clamp
Pizza Plastic fixing
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range D, max. | 28 mm |
|---|---|
| Clamping range D, min. | 8 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0075 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | 8-28mm |
| Dimension D | 27 mm |
| Dimension L | 70 mm |
| Drill hole depth | 65 mm |
|---|---|
| Drill hole diameter, min. | 6 mm |
| Fastening type | Plug fastening |
| Halogen-free | yes |
| Material | Polyamide |
| Pull-out value | 500 N |
| Version for | Closed |
